Free Access Cisco.300-615.v2022-05-28.q107 Practice Test (Page 22)

Question 101

An engineer attempts to register Cisco UCS Manager to Cisco UCS Central, but the registration fails. The engineer can ping Cisco UCS Central from UCS Manager. Which two actions must the engineer attempt to resolve the problem? (Choose two.)

A.Synchronize the date and time to NTP for Cisco UCS Central and the Cisco UCS domains.

B.Apply the UCS Central license to UCS Central.

C.Place Cisco UCS Manager on the same subnet as Cisco UCS Central.

D.Allow port 443 between Cisco UCS Manager and Cisco UCS Central.

E.Allow port 9443 between Cisco UCS Manager and Cisco UCS Central.

Question 102

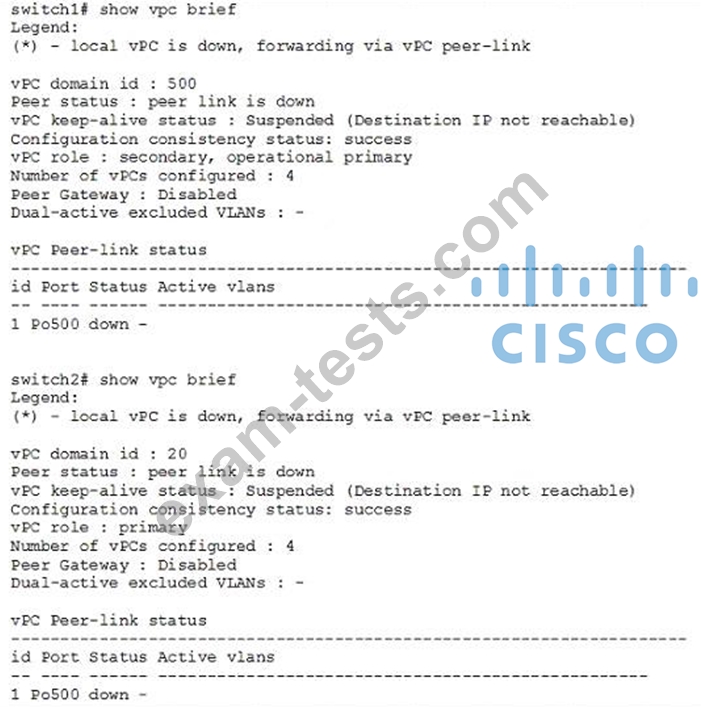

Refer to the exhibit.

The vPC between switch1 and switch2 does not work. Which two actions resolve the problem? (Choose two.)

A.Configure the IP address on the interface.

B.Activate VLANs on the vPC.

C.Configure one of the switches as primary for the vPC.

D.Correct the configuration of the vPC peer link and the vPC peer keepalive.

E.Match the vPC domain ID between the two devices.

Question 103

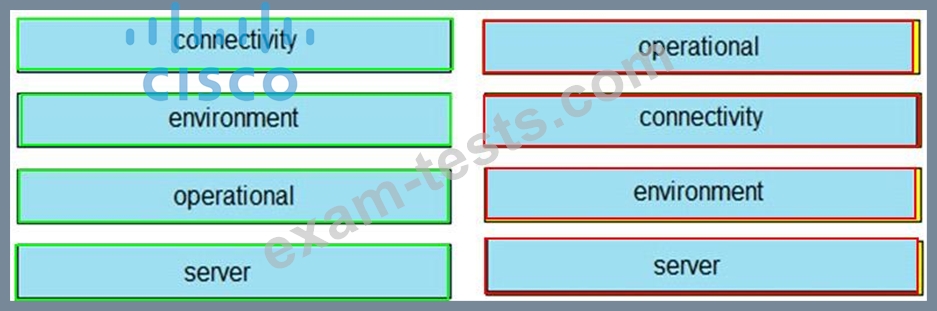

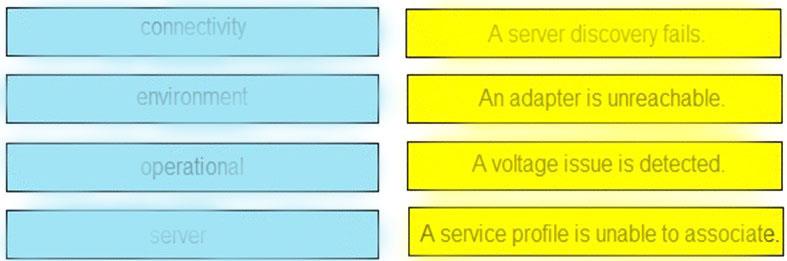

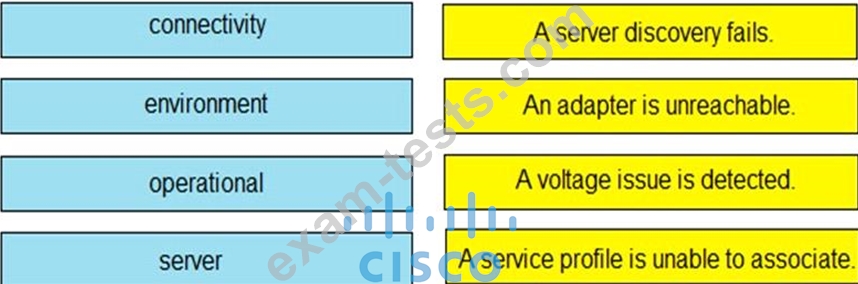

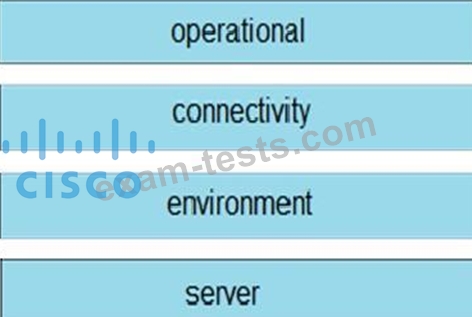

Drag and drop the Cisco UCS SNMP fault types from the left onto the correct issues on the right.

Question 104

Cisco Unified Computing System Manager raises a critical error message that indicates that the system has overlapping Ethernet and FCoE VLANs. All of the Ethernet traffic on the overlapping VLANs drops. Which action resolves the issue?

A.Set the FCoE VLAN as the native VLAN on server uplinks.

B.Change the PIN groups on the vHBAs.

C.Modify the VLAN assignment to vNICs.

D.Modify the FCoE VLAN.
