Free Access Cisco.350-501.v2022-03-26.q200 Practice Test (Page 18)

Question 81

You are creating new Cisco MPLS TE tunnels. Which type of RSVP message does the headend router send to reserve bandwidth on the path to the tailend router?

A.path

B.tear

C.error

D.reservation

Question 82

A company needs to improve the use of the network resources that is used to deploy internet access service to customers on separate backbone and internet access network. Which two major design models should be used to configure MPLS L3VPNs and internet service in the same MPLS backbone? (Choose two.)

A.Carriage of full internet routes in a VPN, in the case of internet access VPNS

B.Internet routing through global routing on a PE router.

C.Internet access routing as another VPN in the ISP network.

D.Internet access through leaking of internet routed from the global table into the L3VPN VRF

E.Internet access for global routing via a separate interface in a VRF

Question 83

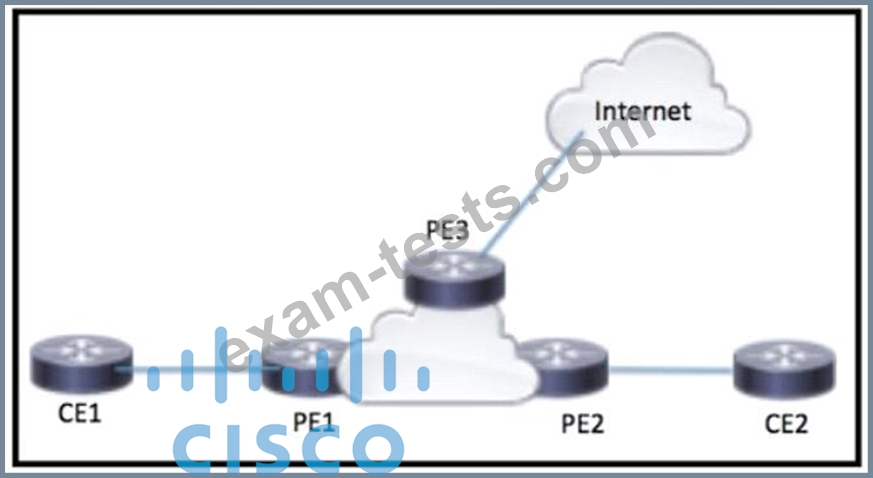

Refer to the exhibit.

CE1 and CE2 require connectivity to the internet through the ISP connected to PE3 What should an engineer configure to complete this task?

A.CE1 and CE2 must be configured with a route distinguisher in the PE1 VRF that dynamically imports the route from the internet.

B.CE1 and CE2 must be configured to use a static default route with a next-hop of PE3 to reach internet routes.

C.PE1 must be configured with an import route target in the CE1 VRF that matches the export route target for the internet VRF on PE3.

D.PE2 must be configured to serve as a route reflector for PE3 routes learned from the internet. PE2 then shares the routes with CE1 and CE2.

Question 84

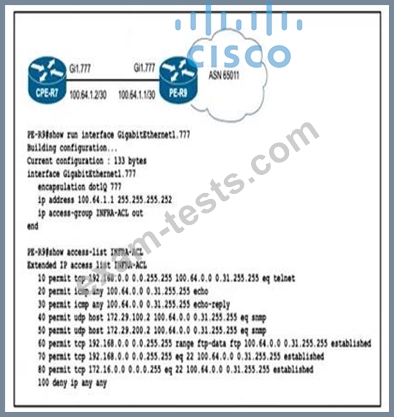

Refer to the exhibit.

To protect in-band management access to CPE-R7, an engineer wants to allow only SSH management and provisioning traffic from management network 192.168.0.0/16. Which infrastructure ACL change must be applied to router PE-R9 to complete this task?

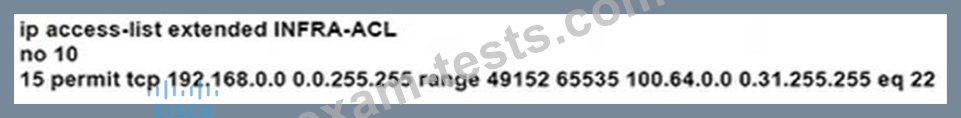

A)
