Free Access Cisco.350-501.v2022-03-26.q200 Practice Test (Page 31)

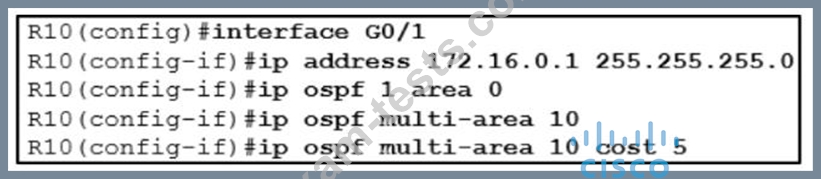

Question 146

Refer to the exhibit.

A network engineer is implementing OSPF multiare
a. Which command on interface GO/1 resolves adjacency issues in the new area?

A.ip ospf network point-to-multipoint

B.ip ospf network point-to-point

C.ip ospf network non-broadcast

D.ip ospf network broadcast

Question 147

Refer to the exhibit:

Which condition must be met by the OSPF peer of router R1 before the two devices can establish communication?

A.The interface on the OSPF peer must use the same key ID and key value as the configured interface

B.The OSPF peer must use clear-text authentication

C.The interface on the OSPF peer may have a different key ID, but it must use the same key value as the configured interface

D.The OSPF peer must be configured as an OSPF stub router

Question 148

After implement MPLS protocol for multiple VRFs on a single Cisco device, the engineer notices all VRFs on the router still do to not LDP session protection feature enabled. Which configuration must the engineer apply to enable the LDP session protection feature FOR LDP neighbors within each VRF?

A.Configure LDP session protection globally on the device only.

B.Configure LDP session protection within the individual VRFs.

C.Configure LDP session protection globally on the device and on each neighbor that requires session protection.

D.Configure LDP session authentication on the device to enable LDP session protection on each VRF automatically.

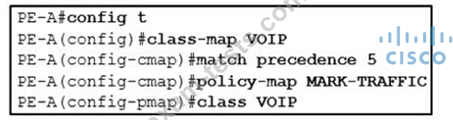

Question 149

Refer to the exhibit:

Which command is used to complete this configuration for QoS class-based marking?

A.PE-A(config-pmap-c)#fair-queue

B.PE-A(config-pmap-c)#set dscp ef

C.PE-A(config-pmap-c)#random-detect

D.PE-A(config -pmap-c)#priority

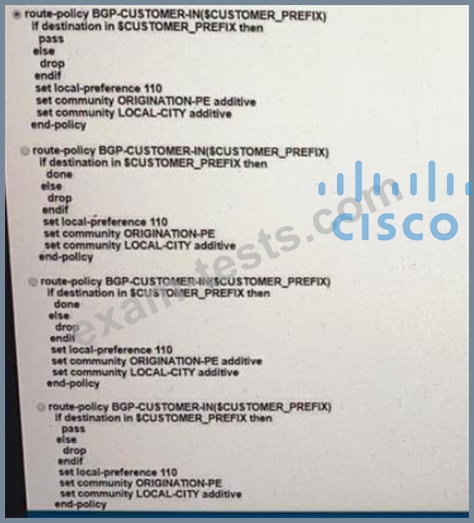

Question 150

Refer to the exhibit.
A network engineer is implementing a standard customer route-policy on ASBR1 with these requirements:
* It must accept only customer-assigned prefixes
* It must preserve customer advertised BGP communities
* It must set the local-preference to 110 for all prefixes
* It must attach the ORIGINATION-PE and LOCAL-CITY communities to all accepted prefixes.
Which route policy must the engineer implement on ASBR1 to satisfy the requirements?

A.Option D

B.Option B

C.Option A

D.Option C
