Question 11
Refer to the exhibit.
A customer runs OSPF with Area 5 between its aggregation router and an internal router When a network change occurs in the backbone. Area 5 starts having connectivity issues due to the SPF algorithm recalculating an abnormal number of times in Area 5 You are tasked to redesign this network to increase resiliency on the customer network with the caveat that Router B does not support the stub area How can you accomplish this task*?
A customer runs OSPF with Area 5 between its aggregation router and an internal router When a network change occurs in the backbone. Area 5 starts having connectivity issues due to the SPF algorithm recalculating an abnormal number of times in Area 5 You are tasked to redesign this network to increase resiliency on the customer network with the caveat that Router B does not support the stub area How can you accomplish this task*?
Question 12

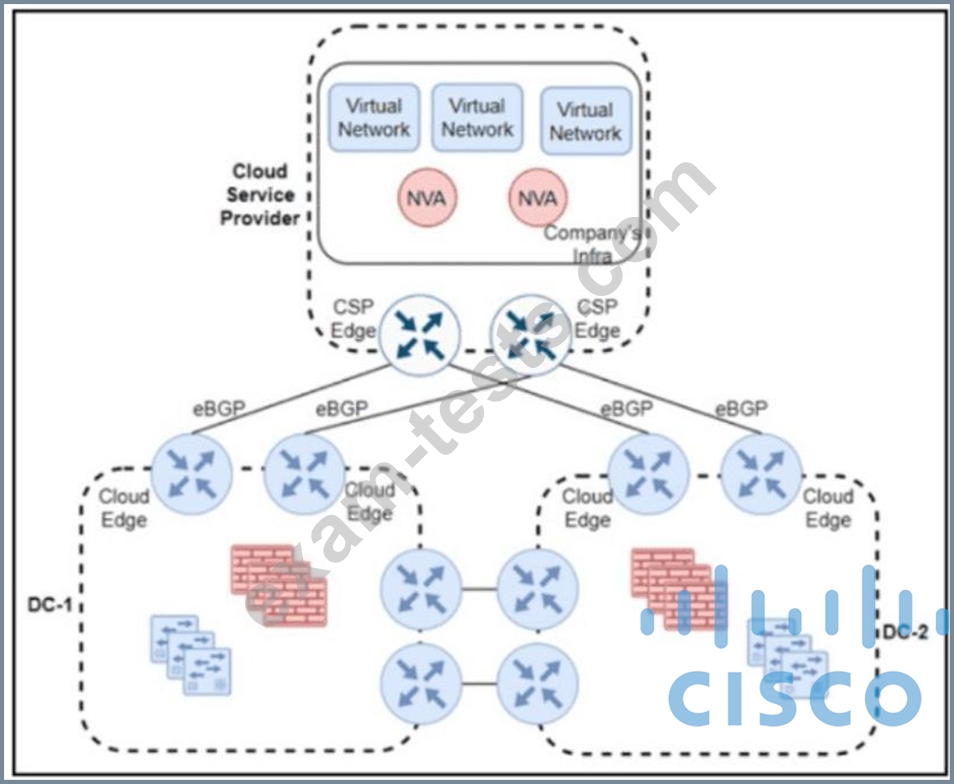

Refer to the exhibit A company has a hybrid cloud architecture with two on-premises data centers that connect to a public cloud service provider by using direct connect and eBGP routing. Encryption is unsupported by the cloud service provider, so the company plans to use an IPsec overlay network over its direct connects. Two virtual network appliances will be installed in the cloud infrastructure to establish tunnels and perform routing The company chose OSPF as the overlay routing protocol because the operations team is familiar with the protocol and because OSPF is the IGP on the on-premises network. The cloud network must be as isolated as possible from the on-premises network. What must be used for the OSPF overlay connectivity ?
Question 13
Refer to the exhibit.
An engineer is designing the network for a multihomed customer running in AS 111. The AS does not have any other ASs connected to it. Which technology is more comprehensive to use in the design to make sure that the AS is not being used as a transit AS?
An engineer is designing the network for a multihomed customer running in AS 111. The AS does not have any other ASs connected to it. Which technology is more comprehensive to use in the design to make sure that the AS is not being used as a transit AS?
Question 14
You have been asked to design a remote access VPN solution to support up to 2000 devices. You must ensure that only corporate assets are allowed to connect to the VPN, and users must authenticate to gain access based on their user role. Users must use a password that they are already using to access existing applications. A user may not always use the same device to access the VPN. Which two options combined meet the requirements? (Choose two)
Question 15

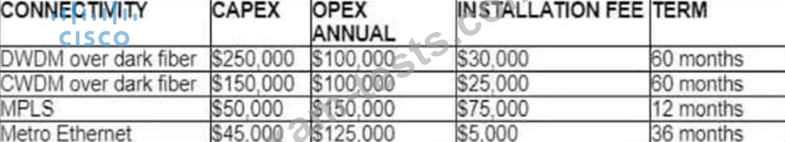

Refer to the table. A customer investigates connectivity options for a DCI between two production data centers. The solution must provide dual 10G connections between locations with no single points of failure for Day 1 operations. It must also include an option to scale for up to 20 resilient connections in the second year to accommodate isolated SAN over IP and isolated dedicated replication IP circuits. All connectivity methods are duplex 10 Gbps. Which transport technology costs the least over two years in this scenario?
