Free Access Nokia.4A0-C01.v2022-03-22.q236 Practice Test (Page 37)

Question 176

Click on the exhibit button below. Assume the following:

The protected path is R1-R2-R3-R6.
Fast reroute one-to-one protection is enabled.
If the original LSP already has two labels, and router R2 has failed, how many labels will there be in packets on the detour path?

A.3

B.2

C.4

D.1

Question 177

What type of LSA is used to flood information about prefixes from one OSPF area to other attached areas?

A.Type 1

B.Type 4

C.Type 3

D.Type 7

Question 178

What is the function of the MPLS label assigned to a packet?

A.It specifies the packet's header length

B.It specifies the type of data contained in the packet

C.It identifies the origin of the packet.

D.It identifies the FEC.

Question 179

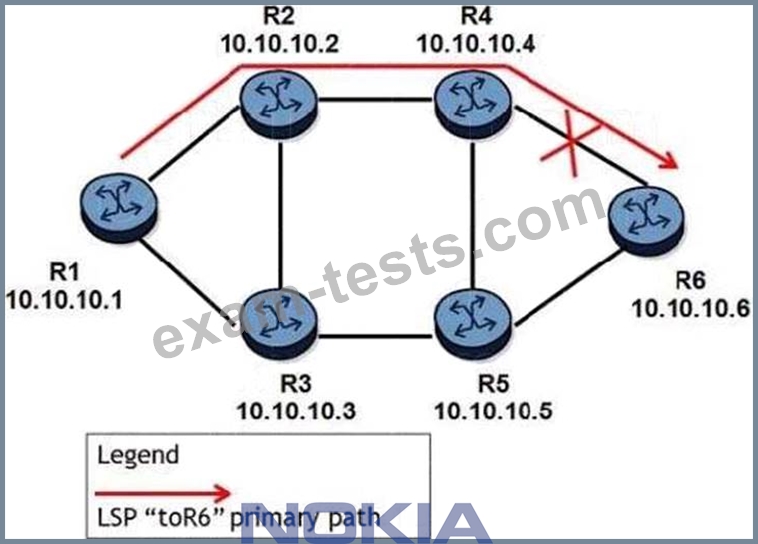

Click on the exhibit.

An LSP path is established on router R1 toward router R6. After router R4 detects that the link between routers R4 and
R6 goes down, which of the following will affect the failure propagation time?

A.The time router R1 takes to signal an alternate path through router R3.

B.The time router R4 takes to detect RSVP Hello message timeout from router R6.

C.The time router R4 takes to send a PATH Error message toward the head-end router.

D.The time router R4 takes to send a RESV Error message to the head-end router.

Question 180

The destination IP address of a received unlabeled packet is successfully matched in the FIB.
Which of the following is FALSE?

A.A PUSH label stack operation may be performed.

B.A POP label stack operation may be performed.

C.The outgoing interface and next-hop address will be determined from the FIB.

D.The packet can be forwarded as a labeled or unlabeled packet.
