Free Access Nokia.4A0-C01.v2022-03-22.q236 Practice Test (Page 38)

Question 181

Which of the following is described by the following statement? An LSR propagates a label mapping only for an FEC for which it has a label mapping for the FEC next-hop.

A.Independent control mode.

B.Ordered control mode.

C.Downstream on demand

D.Conservative label retention.

E.Liberal label retention.

Question 182

Which mode does the following statement describe? An LSR will advertise a label mapping immediately, without waiting for a label mapping from the FEC's next-hop.

A.Independent control mode

B.Conservative label retention mode

C.Liberal label retention mode

D.Ordered control mode

Question 183

Which of the following commands is used to enable an E-pipe service?

A.config>service= <service-id> no shutdown

B.config>service= epipe <service-id> enable

C.config>port= <port-id> no shutdown

D.config>service~ vpws <service-id> enable

E.config>service= epipe <service-id> no shutdown

Question 184

The SAP 1/1/1:2.3 receives an untagged Ethernet frame.
Which of the following is TRUE?

A.Only inner VLAN tag 3 is added.

B.The frame is dropped.

C.VLAN tags 2 and 3 are added to the frame.

D.Only outer VLAN tag 2 is added.

Question 185

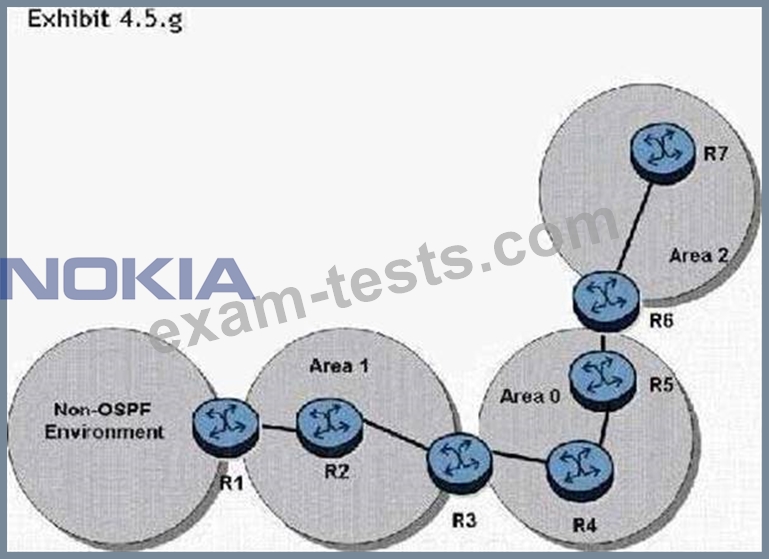

Click the exhibit button.

In the topology shown, router R1 is an ASBR configured to export external routes to OSPF.
Assuming that there are no stub networks, which of the following statements regarding type 4 LSA generation is true?

A.Router R3 generates a type 4 LSA that is flooded to area 0, and router R6 generates a type 4 LSA that is flooded to area 2.

B.Router R1 generates a type 4 LSA that is flooded to areas 0, 1, and 2.

C.Router R3 generates a type 4 LSA that is flooded to areas 0, 1, and 2.

D.Router R3 generates a type 4 LSA that is flooded to areas 0 and 2.
