Free Access H3C.GB0-191-ENU.v2022-04-13.q162 Practice Test (Page 2)

Question 1

On the MSR router, use the ______ command to view the router's NAT aging time.

A.display nat time

B.display nat expire

C.display nat time-out

D.display nat aging-time

Question 2

To configure Trunk on the link between Ethernet switches and allow the transmission of VLAN 10 and VLAN 20 information, you must configure ______ on the switch.

A.[Switch] port link-type trunk

B.[Switch] port link-type access

C.[Switch-Ethernet0/1] port link-type trunk

D.[Switch-Ethernet0/1] port trunk pvid 10

Question 3

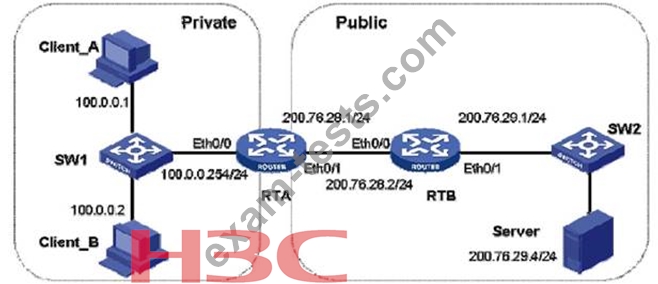

In the network environment as shown in the figure, perform the following NAT configuration on RTA:

[RTA]acl number 2000
[RTA-acl-basic-2000]rule 0 permit source 100.0.0.0 0.0.0.255
[RTA-acl-basic-2000]nat address-group 1 200.76.28.11 200.76.28.11
[RTA]interface Ethernet0/1
[RTA-Ethernet0/1]nat outbound 2000 address-group 1
After configuration, both Client_A and Client_B are accessing Server, then the NAT table of RTA may be ______ at this time.

A.Protocol GlobalAddr Port InsideAddr Port DestAddr Port 1 200.76.28.12 12289 100.0.0.1 1024 200.76.29.4 1024 VPN: 0, status: 11, TTL: 00:01:00, Left: 00:00:59 1 200.76. 28.11 12288 100.0.0.2 512 200.76.29.4 512 VPN: 0, status: 11, TTL: 00:01:00, Left: 00:00:51

B.Protocol GlobalAddr Port InsideAddr Port DestAddr Port 1 200.76.28.11 12289 100.0.0.1 1024 200.76.29.4 1024 VPN: 0, status: NOPAT, TTL: 00:01:00, Left: 00:00:59 1 200.76. 28.11 12288 100.0.0.2 512 200.76.29.4 512 VPN: 0, status: 11, TTL: 00:01:00, Left: 00:00:51

C.Protocol GlobalAddr Port InsideAddr Port DestAddr Port 1 200.76.28.11 12289 100.0.0.1 1024 200.76.29.4 1024 VPN: 0, status: 11, TTL: 00:01:00, Left: 00:00:59 1 200.76. 28.12 12288 100.0.0.2 512 200.76.29.4 512 VPN: 0, status: 11, TTL: 00:01:00, Left: 00:00:51

D.Protocol GlobalAddr Port InsideAddr Port DestAddr Port 1 200.76.28.11 12289 100.0.0.1 1024 200.76.29.4 1024 VPN: 0, status: 11, TTL: 00:01:00, Left: 00:00:59 1 200.76. 28.11 12288 100.0.0.2 512 200.76.29.4 512 VPN: 0, status: 11, TTL: 00:01:00, Left: 00:00:51

Question 4

The following routing information is seen on the MSR router running RIP:
<MSR>display ip routing-table 6.6.6.6
Routing Table: Public
Summary Count: 2
Destination/Mask Proto Pre Cost NextHop Interface
6.0.0.0/8 RIP 100 1 100.1.1.1 GE0/0
6.6.6.0/24 Static 60 0 100.1.1.1 GE0/0
At this time, the router receives a data packet with a destination address of 6.6.6.6, then ______.

A.The packet will preferentially match the static route in the routing table because it has the longest mask

B.The packet will first match the static route in the routing table because of its high priority

C.The packet will first match the RIP route in the routing table because its mask is the shortest

D.The packet will preferentially match the static route in the routing table because its metric value is the smallest

Question 5

Which of the following descriptions about the MSR routing table are correct? (multiple choice)

A.If the route to the same destination network segment has multiple sources, then only the route with the largest metric value is written into the routing table

B.If the route to the same destination network segment has multiple sources, only the route with the smallest metric value is written into the routing table

C.If the same routing protocol finds multiple paths to the same destination network segment, then these routes cannot all be written into the routing table

D.If the route to the same destination network segment has multiple sources, then only the route with the highest Preference value will be written into the routing table

E.If the same routing protocol finds multiple paths to the same destination network segment, then these routes may all be written into the routing table

F.If the route to the same destination network segment has multiple sources, then only the route with the smallest Preference value will be written into the routing table
