Free Access H3C.GB0-381-ENU.v2022-11-25.q315 Practice Test (Page 16)

Question 71

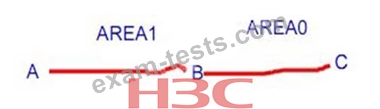

In the topology shown in the figure, perform the following configuration in RTA and RTB respectively:
RTA-ospf-1-area-0.0.0.1]network 192.168.0.0 0.0.0.255
RTA-ospf-1-area-0.0.0.1]network 192.168.1.0 0.0.0.255
RTA-ospf-1-area-0.0.0.1]network 192.168.2.0 0.0.0.255
RTA-ospf-1-area-0.0.0.1]network 192.168.3.0 0.0.0.255
RTA-ospf-1-area-0.0.0.1]network 192.168.4.0 0.0.0.255
RTB] acl number 2000
RTB-acl-basic-2000] rule 0 permit source 192.168.1.0 0.0.0.255
RTB-ospf-1-area-0.0.0.1] filter 2000 export
Then the impossible routes in the RTC routing table are _____

A.192.168.2.0/24

B.192.168.0.0/24

C.192.168.4.0/24

D.192.168.1.0/24

Question 72

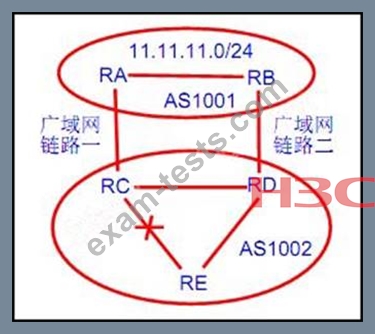

The networking is as shown in the figure, RTA and RTB are located in AS 1001, RTC, RTD and RTE are located in AS 1002, AS 1001 advertises the BGP route 11.11.11.0/24 to AS 1002, the main configuration of BGP of RTC and RTD is as follows, if RTE, RTC The interconnect link is interrupted, RTE accesses the 11.11.11.0/24 network segment, which WAN link is prioritized?
RTC]
bgp 1002
preference 20 170 200
peerRTA as-number 1001
peerRTD as-number 1002
peerRTA route-policsetmed import
route-policsetmed permit node 10
applcost 100
RTD]
bgp 1002
preference 20 170 200
peerRTB as-number 1001
peerRTC as-number 1002
peerRTA route-policsetmed import
route-policsetmed permit node 10
applcost 200

A.Priority goes through wide area link two, because MED 200 of RTD > MED 100 of RTC.

B.Priority passes through WAN link one, because MED 100 of RTC < MED 200 of RTD

C.Priority passes through WAN link 1, because eBGP routes on RTC have priority.

D.Priority goes through the WAN link 2, because the eBGP route on the RTD has priority.

Question 73

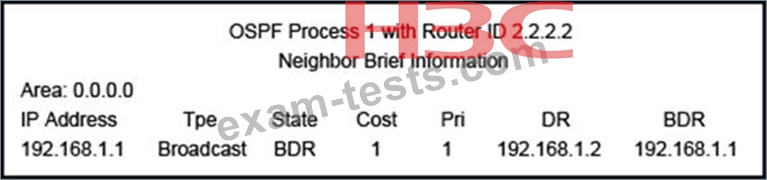

After executing the displaospf interface command on the MSR router RTA, the router output is as follows:

From the above output, it can be judged that ________.

A.The IP address of the current interface is 192.168.1.1

B.The Router ID of OSPF process 1 of RTA is 2.2.2.2

C.The OSPF network type of the current interface is Broadcast

D.RTA is elected as DR in the network segment where this interface is located

Question 74

The illustration is a BGP multi-exit enterprise network. Which of the following statements is true about BGP deployments in multi-egress enterprise networks:

A.In a BGP multi-exit enterprise network, there can be (1) ISP only advertises default routes, (2) ISP advertises part of default routes and Internet specific routes, (3) ISP advertises all Internet routes.

B.In mode (2), RTC can reach the Internet through part of the Internet specific routes and through the IGP protocol according to its own strategy.

C.Usually, in mode (3) RTC can choose the optimal path to access Interner through IGP according to its own strategy.

D.In mode (1), RTC can choose one of the default routes through IGP to reach the Internet according to its own strategy.

Question 75

In the topology shown in the figure, the following configurations are performed on RTA and RTB respectively:
RTA-ospf-1-area-0.0.0.1]network 192.168.0.0 0.0.0.255
RTA-ospf-1-area-0.0.0.1]network 192.168.1.0 0.0.0.255
RTA-ospf-1-area-0.0.0.1]network 192.168.2.0 0.0.0.255
RTA-ospf-1-area-0.0.0.1]network 192.168.3.0 0.0.0.255
RTA-ospf-1-area-0.0.0.1]network 192.168.4.0 0.0.0.255
RTB] acl number 2000
RTB-acl-basic-2000] rule 0 permit source 192.168.0.0 0.0.0.255
RTB-acl-basic-2000] rule 5 permit source 192.168.1.0 0.0.0.255
RTB-ospf-1] filter-polic2000 import
Then the possible routes in the RTB routing table are _____

A.192.168.4.0/24

B.192.168.2.0/24

C.192.168.0.0/24

D.192.168.1.0/24
