Free Access H3C.GB0-381-ENU.v2022-11-25.q315 Practice Test (Page 48)

Question 231

The IS-IS process of a router has been configured with NET as 01.abcd.0001.0002.0003.00. Which of the following NET addresses can still be configured?

A.01.abcd.0001.0003.0002.00

B.01.0001.0002.0003.00

C.02.fedc.0010.0020.0030.00

D.fedc.0001.0002.0003.00

Question 232

As shown in the figure, the MSR router of the headquarters is connected to the branch through two 100Mbps Ethernet links. To make full use of the existing bandwidth resources, which of the following routing schemes is optimal?

A.Run the RIP protocol simultaneously on the 2 Ethernet links between the headquarters and the branch to realize ECMP

B.Run RIP on the main link, configure a static route, point the outgoing interface to the backup link, and set the priority to 150

C.The main link runs OSPF, the backup link runs RIP

D.The main link runs OSPF, configures a static route, and the outgoing interface points to the backup link

Question 233

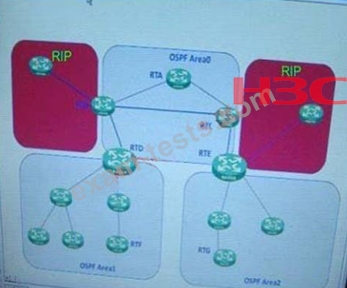

Based on the topology shown in the figure, which of the following statements about OSPF router types is true is ________.

A.RTB is both a backbone router and an ABR

B.RTA is both an intra-area router and a backbone router

C.RTE is not an intra-area router

D.RTD is both a backbone router and an ASBR

Question 234

In the OSI network system, what has the similar function as the IP protocol in TCP/IP is _________.

A.Network Service Access Point (NSAP)

B.Connectionless Network Service (CLNS)

C.Network Protocol Data Unit (NPDU)

D.Connectionless Network Protocol (CLNP)

Question 235

The disadvantage of Z routers using the Ethernet MAC address to generate the NET address of the IS-IS process is ________.

A.The MAC address and the Stem-ID in the NET have the same length, which is easy to confuse

B.MAC addresses are not necessarily related to network planning, and MAC addresses are not easy to remember

C.MAC addresses are not global, and management is inconvenient
