4

3
Explanation:
1. Understanding Router-LSAs in OSPFv3
* Router-LSA (Type 1 LSA) is generated by every OSPFv3 router to describe its own links and connected networks within the same area.
* Each router in an OSPF area generates exactly one Router-LSA to advertise its own topology information.
* Router-LSAs are flooded throughout the area but do not cross area boundaries.
2. Analyzing the Given OSPFv3 Network

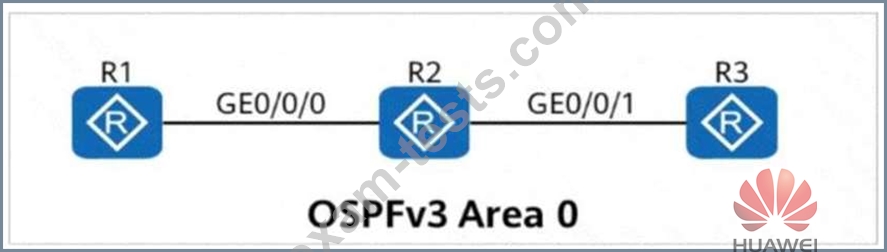

* The topology consists of three routers: R1, R2, and R3, all connected in OSPFv3 Area 0.
* Since all three routers participate in OSPFv3, each router generates its own Router-LSA (Type 1 LSA).
* R2, as an OSPF router, will have its own Router-LSA and also receive the Router-LSAs from R1 and R3.
3. Counting the Number of Router-LSAs in R2's LSDB
* R1 generates 1 Router-LSA (for itself).
* R2 generates 1 Router-LSA (for itself).
* R3 generates 1 Router-LSA (for itself).
* Total Router-LSAs in R2's LSDB = 3 (one from each router).
Final Answer:
HCIP-Datacom-Advanced Routing & Switching Technology References:
* OSPFv3 LSA Types and Their Roles
* Understanding Router-LSA (Type 1) and Its Function in LSDB
