You plan to use multi-protocol BGP to implement dynamic VRF route leaking on an ArubaOS-CX switch.
Is this a rule for the setup?
Solution: You can only leak routes between up to three VRFs.

Is this a difference between a typical data center network's requirements and a typical campus network's requirements?
Solution: Data center networks are typically less oversubscribed than campus networks.

Refer to the exhibits.


Is this how the switch-1 handles the traffic?
Solution: A broadcast arrives in VLAN 10 on Switch-1. Switch 1 forwards the frame on all interfaces assigned to VLAN 10, except the incoming interface. It encapsulates the broadcast with VXIAN and sends it to 192.168.1.3, out not 192.168.1.2.

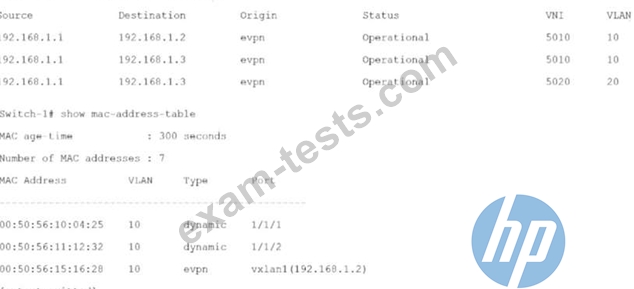

Refer to the exhibits.


Is this how the switch handles the traffic?
Solution: A frame with destination MAC address, 00:50:56:15:16:28, arrives with a VLAN 10 tag on 1/1/1 on Switch-1. Switch-1 encapsulates the frame with VXLAN and an IP header destined to 192.168.1.2.

You need to integrate Aruba Fabric Composer (AFC) with customer datacenter software. Is this integration possible?
Solution: Aruba Fabric Composer (AFC) with Nutanix Hypervisor (AHV)
