Free Access Juniper.JN0-104.v2022-06-08.q244 Practice Test (Page 19)

You notice traffic destined to 172.31.17.0/24 is traversing an OSPF path rather than BGP Path.
What is causing this behavior?

A.The 172.31.17.0/24 BGP route is missing a valid default next hop

B.The 172.31.17.0/24 route does not have a valid BGP entry

C.The 172.31.17.0/24 BGP has a higher route preference

D.The 172.31.17.0/24 BGP route's outgoing interface is down

Which two statements are correct regarding logical units on Junos devices? (Choose two.)

A.Logical unit numbers must match the DLCI or VCI numbers configured on the interfac

B.Logical units are always required for any interface configured with logical addresses such as IPv4 and IPv6.

C.Ethernet interfaces can be configured to use any logical unit number, regardless of whether 802.1Q VLAN tagging is enabled.

D.Logical unit 0 is the only value allowed on interfaces running HDLC or PPP encapsulations.

Which configuration causes OSPF-learned routes to be advertised to other OSPF neighbors?

A.top edit policy-options policy-statement demo set term 1 from active routes set term 1 then accept top set protocols ospf export demo

B.top edit policy-options policy-statement demo set term 1 from protocol ospf set term 1 then accept top set protocols ospf export demo

C.No configuration needed; it happens by default

D.set protocols ospf advertise in-out

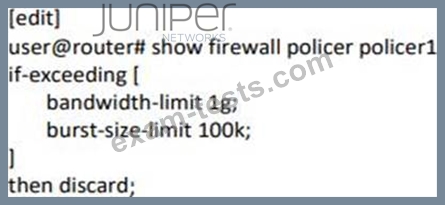

Click the Exhibit Button.

You are asked to limit traffic on interface xe-0/0/3 to 1G using the policer shown in the exhibit.
Which configuration would accomplish this task?

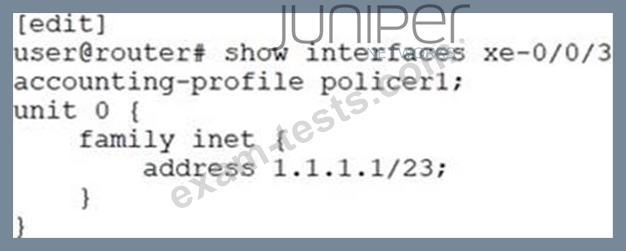

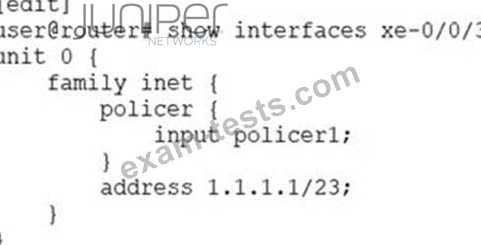

A)

A.Option A

B.Option D

C.Option C

D.Option B

How many IP addresses can be configured on a given interface?

A.one

B.one primary and one secondary

C.as many as you want

D.one primary and multiple secondary
