In Junos OS, the configuration database is designed with a robust versioning system that facilitates rapid recovery from administrative errors. Every time a commit command is successfully executed, the system automatically archives the previous active configuration and assigns it a " rollback " index. The rollback command is used within configuration mode to revert the candidate configuration to a previously saved state.
The indices are zero-based, where rollback 0 represents the currently active configuration that was just committed. To restore the configuration that was functional immediately before the most recent, problematic commit, the administrator must use rollback 1. This command replaces the current candidate configuration with the contents of the last known working state. It is important to note that executing rollback 1 only populates the candidate buffer; to make this previous configuration active and restore connectivity, the administrator must subsequently issue the commit command. This mechanism is a cornerstone of Junos OS ' s commitment to high availability and operational resilience, allowing for nearly instantaneous restoration of services without the need for manual line-by-line configuration edits during a network outage.
Reference: Configuration Basics, Managing Configurations, Rollback configurations.

The forwarding table contains the active routes derived from the routing table and is used by the Packet Forwarding Engine to forward packets.

The Address Resolution Protocol (ARP) is a fundamental Layer 2 utility used within the IPv4 suite to resolve a known network-layer (Layer 3) address to its corresponding physical media access control (MAC) or hardware address (Layer 2). In a typical Ethernet environment, when a Junos device needs to forward a packet to a next-hop on a local subnet, the Packet Forwarding Engine (PFE) requires the destination MAC address to properly encapsulate the frame.
The process begins with an ARP Request, which is broadcast to all hosts on the segment asking,
"Who owns this IP address?" The host assigned that specific IP responds with an ARP Reply containing its MAC address. The Junos device then stores this mapping in its ARP cache (viewable via the show arp command) to avoid repeated broadcasts for subsequent packets. This resolution is essential because while IP addresses facilitate end-to-end logical routing, the actual delivery of data across a physical wire or switch fabric relies entirely on hardware addresses.
Without successful ARP resolution, the device cannot complete the Layer 2 header, and the traffic will be dropped as "encapsulation failed."

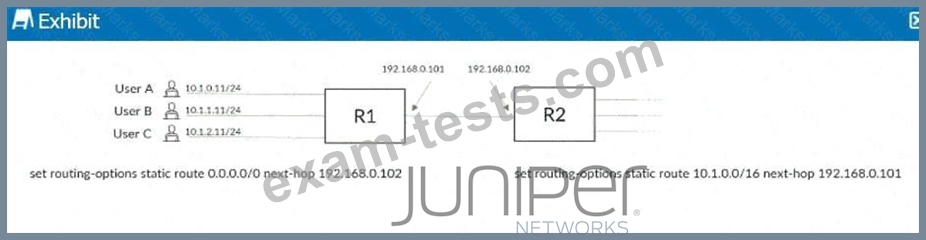

The configuration exhibit demonstrates a classic scenario where mismatched static routing leads to a routing loop . Router R1 is configured with a default route ( 0.0.0.0/0 ) pointing to R2 as its next hop. Conversely, R2 is configured with a broad static route for 10.1.0.0/16 pointing back to R1 .
If a user sends a packet to an unassigned IP address such as 10.1.99.1 , the following sequence occurs:
* R1 receives the packet and consults its routing table. Finding no specific match for the 10.1.99.1 host, it uses the default route and forwards the packet to R2 .
* R2 receives the packet and identifies that 10.1.99.1 falls within its defined static route for 10.1.0.0/16 .
* Following its configuration, R2 forwards the packet back to R1 . This process repeats indefinitely-or until the packet ' s Time to Live (TTL) reaches zero-because the broad summary on R2 encompasses addresses that R1 does not actually have a local path for. This illustrates the critical importance of ensuring that summary routes or default routes do not overlap in a way that creates circular forwarding paths for non-existent destinations. Reference: Routing Fundamentals, Static Route Configuration, Routing Loops and TTL.

Link-state routing protocols exchange information about the state of network links to determine the best path to a destination. These protocols maintain a complete view of the network topology.
A). IS-IS (Intermediate System to Intermediate System): IS-IS is a link-state routing protocol used in large-scale networks. It builds a complete topology map of the network and calculates the shortest path using algorithms like Dijkstra.
B). OSPF (Open Shortest Path First): OSPF is another link-state routing protocol, widely used in IP networks. Like IS-IS, it uses a link-state database and Dijkstra's algorithm to calculate the shortest path.
