over the top (OTT) with VNI translation enabled: An OTT (Over-the-Top) architecture with VNI translation allows you to keep each data center's routing domain isolated while enabling translation of VXLAN Network Identifiers (VNIs) between the data centers. This approach supports multi-tenancy and facilitates communication between isolated data centers by mapping VNIs between them.

With Type 2 seamless stitching, the inter-data-center extension is built at the data center edges.
The border leaf devices act as the stitching points that terminate and re-originate the VXLAN overlay across the DCI, so the VXLAN tunnels for the interconnect are established between the border leaf devices in each data center.

To load-balance traffic from a leaf toward an external prefix learned via both spines, the leaf must install multiple equal BGP next hops for that route and then perform ECMP in the forwarding table. Enabling BGP multipath on the leaf allows it to keep both spine-learned paths active for the same prefix, and applying a forwarding-table load-balancing policy on the leaf ensures traffic is actually distributed across the available next hops.

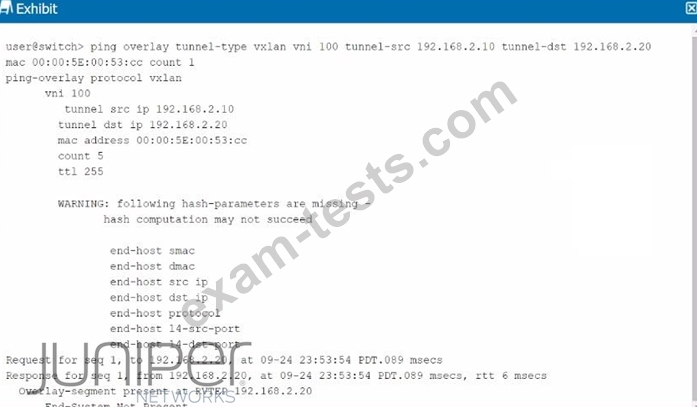

* Analyzing the Exhibit Output:
* The command ping overlay tunnel-type vxlan is used to test the VXLAN tunnel between two VTEPs (VXLAN Tunnel Endpoints). The output shows a warning about missing hash parameters, but more importantly, it displays the result: End-System Not Present.
* Understanding the Response:
* The message End-System Not Present indicates that the remote VTEP (192.168.2.20) did not find the MAC address 00:00:5E:00:53:CC in its forwarding table. This typically means that the MAC address is unknown to the remote VTEP, and as a result, it could not forward the packet to the intended destination.
Conclusion:
* Option B:Correct-The MAC address is unknown and is not in the forwarding table of the remote VTEP, which is why the system reports that the "End-System" is not present.

* ERB Architecture in EVPN-VXLAN:
* ERB (Edge Routed Bridging) architecture is commonly used in data center networks where routing decisions are made at the network edge (leaf or border devices), while bridging (Layer 2 forwarding) is extended across the fabric. This architecture allows for efficient L3 routing while still enabling L2 services like VLANs to span across multiple locations.
* VLAN and VNI Configuration:
* The scenario specifies that a server on the Red VLAN needs to communicate with a server on the Green VLAN. Since these VLANs are in different data centers (DC and DC2), and given the use of EVPN-VXLAN, the communication between these VLANs will require atransit VNI(Virtual Network Identifier). This transit VNI will allow traffic to traverse the VXLAN tunnel across the DCI (Data Center Interconnect).
* Interconnect between SRX Series Devices:
* The exhibit shows SRX Series Chassis Clusters used as service devices (likely for firewalling or other security services). These devices need to be interconnected between the two data centers to ensure that VLANs can communicate effectively. The Blue VLAN needs to be stretched between DC and DC2 to maintain the same Layer 2 domain across both data centers.
Conclusion:
* Option B:Correct-Interconnecting the SRX Series devices will ensure the necessary service chaining, while stretching the Blue VLAN and adding a transit VNI for the Red and Green VLANs will enable the required communication across the data centers.
