* Understanding the Scenario:
* EVPN-VXLAN deployments often involve scenarios where multiple tenants or applications require overlapping VLAN IDs, which can be managed using the mac-vrf routing instance type.
This allows you to segregate traffic within the same VLAN ID across different tenants.
* Host-facing Interface Configuration:
* A. Host-facing interfaces must be configured using a service-provider style configuration:
This is correct. In mac-vrf configurations, host-facing interfaces (those connecting end devices) typically follow a service-provider style configuration, where each customer or tenant's traffic is isolated even if overlapping VLAN IDs are used.
* B. Host-facing interfaces must be configured using enterprise-style configuration:This is incorrect for mac-vrf instances because enterprise-style configurations are more common in simpler, less segmented networks.
* Routing Instance Service Type:
* D. The routing-instance service type can be VLAN-based:This is correct. The service type in mac-vrf can indeed be VLAN-based, which is particularly useful in scenarios where VLAN ID overlap is needed between different tenants or services.
Data Center References:
* The mac-vrf instance type is powerful for handling complex multi-tenant environments in EVPN- VXLAN, especially when dealing with overlapping VLAN IDs across different segments of the network.

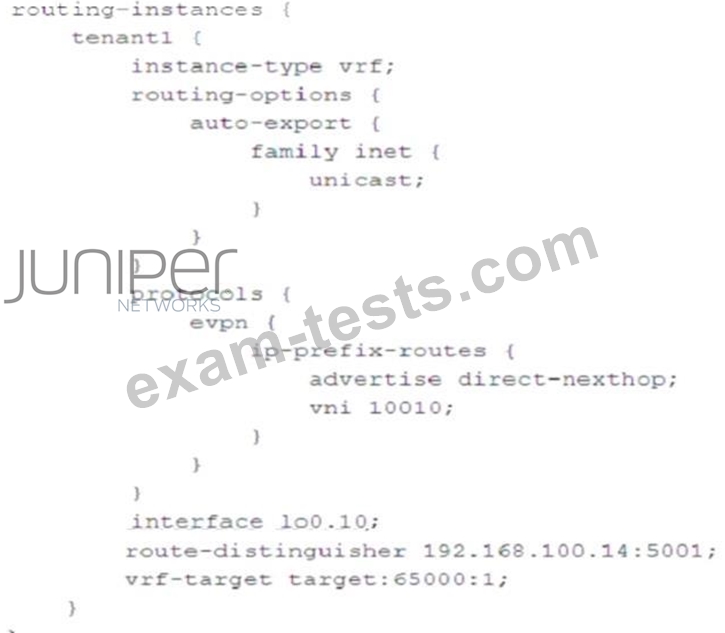

For EVPN Type 5 route advertisement and full inter-data center connectivity, the EVPN configuration must specify the encapsulation type, especially if VXLAN is used as the data-plane overlay.
The parameter encapsulation vxlan must be added under the protocols evpn hierarchy to ensure border leaf devices can advertise and exchange IP prefix routes (Type 5) properly between data centers.
The option to move vrf-target under the EVPN hierarchy is not valid, as that statement is only supported within the routing instance or vni-options section, but not directly under protocols evpn.

For high-performance AI workloads requiring speeds of 400 Gbps or more, a pure Layer 3 IP fabric using EBGP underlay routing is typically deployed for scalability and efficiency. This avoids the complexities of Layer 2 VLANs and minimizes oversubscription.
EBGP-based IP fabrics are common in modern data centers to provide large-scale, scalable, and high-bandwidth connectivity between leaves and spines with VXLAN or other overlays as appropriate but without mandatory Layer 2 VLANs.
EBGP-based IP fabrics typically provide a pure Layer 3 routing underlay that scales easily with high port speeds such as 400Gbps.

* Understanding BGP Configuration in the Exhibit:
* The exhibit shows a BGP configuration on spine1 with a group named underlay, configured to peer with directly connected interfaces of other devices in the network.
* Multipath multiple-as:This statement allows the router to install multiple paths in the routing table for routes learned from different ASes, facilitating load balancing.
* Key Statements:
* A. The multihop statement is not required to establish the underlay BGP sessions:In this case, the BGP peers are directly connected (as indicated by their neighbor IP addresses), so the multihop statement is unnecessary. Multihop is typically used when BGP peers are not directly connected and packets need to traverse multiple hops.
* D. Load balancing for the underlay is configured correctly:The multipath { multiple-as; } statement in the configuration enables load balancing across multiple paths from different autonomous systems, which is appropriate for underlay networks in data center fabrics.
* Incorrect Statements:
* C. The multihop statement is required to establish the underlay BGP sessions:This is incorrect because the peers are directly connected, making the multihop statement unnecessary.
* B. Load balancing for the underlay is not configured correctly:This is incorrect because the configuration includes the necessary multipath settings for load balancing.
Data Center References:
* BGP configurations in EVPN-VXLAN underlay networks are crucial for ensuring redundancy, load balancing, and efficient route propagation across the data center fabric.

In the CRB architecture, inter-VNI (Virtual Network Identifier) routing occurs on the spine switches, meaning the spine devices handle the Layer 3 routing. The leaf switches primarily provide Layer 2 bridging and VXLAN encapsulation/decapsulation, while routing between VXLAN segments is done centrally on the spines.
