* Understanding the Output:

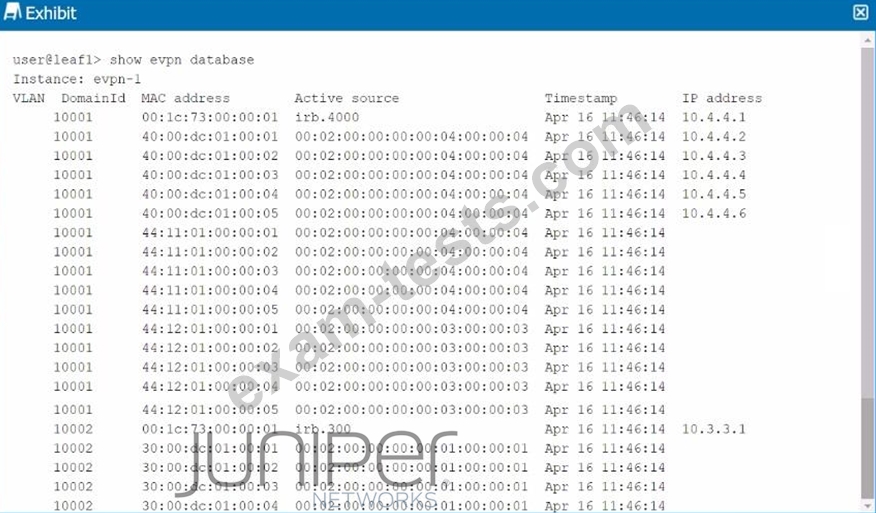

* The show evpn database command output shows the MAC address, VLAN, active source, timestamp, and IP address associated with various hosts in the EVPN instance.
* Analysis of the MAC Address:
* Option A:The MAC address 40:00:dc:01:00:04 is associated with the IP address 10.4.4.5, as indicated by the output in the IP address column. This confirms that this host has been assigned the IP 10.4.4.5.
* Option D:The active source for the MAC address 40:00:dc:01:00:04 is listed as 00:02:00:00:00:
04:00:04:00:00:04:00:04, which indicates that the host is connected via an ESI (Ethernet Segment Identifier) LAG (Link Aggregation Group). This setup is typicallyused in multi-homing scenarios to provide redundancy and load balancing across multiple physical links.
Conclusion:
* Option A:Correct-The host with MAC 40:00:dc:01:00:04 is assigned IP 10.4.4.5.
* Option D:Correct-The host is originating from an ESI LAG, as indicated by the active source value.

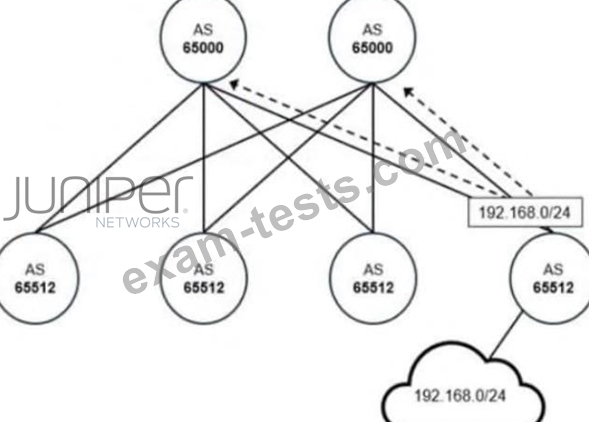

The spines learn 192.168.0.0/24 from the leaf over an eBGP session, and Junos will accept and install received BGP routes by default. However, Junos does not advertise routes to BGP peers unless an export policy explicitly permits them, so the spines will not advertise that route onward to the other leaf peers by default.

Juniper Networks' ZTP (Zero Touch Provisioning) process automates the deployment of new devices by allowing them to fetch and execute scripts for configuration and setup as they are powered on and connected to the network.
Supported Scripting Languages:
The Junos OS supports several scripting languages that can be used during the ZTP process:
Shell scripts are often used for general automation tasks. Python is a widely supported language in Junos, offering powerful scripting capabilities for automating network tasks.
SLAX (Service Logic Execution Environment) is a scripting language specific to Junos, designed to automate configuration tasks and simplify network operations.

BGP unnumbered peering uses only link-local IPv6 addresses on interfaces to automatically discover and establish BGP peer sessions. No routable IP addresses are required on the underlay interfaces.
You must configure the interfaces with family inet6 to enable the link-local IPv6 addresses used for peering.
The BGP peering session is dynamically created based on interface names, which simplifies the configuration significantly compared to manual peering with routable IP addresses.
The peer IP and remote AS numbers are automatically configured for BGP unnumbered peering.
This means unnumbered BGP automatically provisions IPv6 peering using the link-local addresses.
It also supports IPv4 route exchange over the IPv6 next-hop established by unnumbered BGP.
https://www.juniper.net/documentation/us/en/software/nce/nce-225-bgp-unnumbered/index.html

* Load Balancing in VXLAN:
* VXLAN uses UDP encapsulation to transport Layer 2 frames over an IP network. For load balancing across Equal-Cost Multi-Path (ECMP) links, various fields in the packet can be used to ensure even distribution of traffic.
* Key Load Balancing Fields:
* C. The source port in the UDP header is used to load balance VXLAN traffic:This is correct.
The source UDP port in the VXLAN packet is typically calculated based on a hash of the inner packet's fields. This makes the source port vary between packets, enabling effective load balancing across multiple paths.
* D. The inner packet fields are used in the hash for load balancing:This is also correct. Fields such as the source and destination IP addresses, source and destination MACaddresses, and possibly even higher-layer protocol information from the inner packet can be used to generate the hash that determines the ECMP path.
* Incorrect Statements:
* A. The inner packet fields are not used in the hash for load balancing:This is incorrect as the inner packet fields are indeed critical for generating the hash used in load balancing.
* B. The destination port in the UDP header is used to load balance VXLAN traffic:This is incorrect because the destination UDP port in VXLAN packets is typically fixed (e.g., port 4789 for VXLAN), and therefore cannot be used for effective load balancing.
Data Center References:
* Effective load balancing in VXLAN is crucial for ensuring high throughput and avoiding congestion on specific links. By using a combination of the source UDP port and inner packet fields, the network can distribute traffic evenly across available paths.
