Question 316

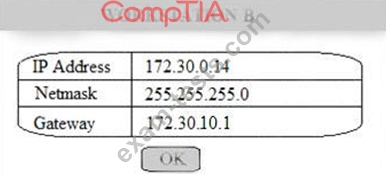

A network technician installed a new host on the network. The host is not connecting to the company's cloud servers. The technician attemtps to ping a server using the AP address with no success. Checking the IP address using ipconfing displays:

Which of the following should the technician perform NEXT to determine where the issue is located?

A.Change the DNS servers to be on the same subnet as the host.

B.Perform a tracert command to locate where the packet is dropped.

C.Modify the router's ACL to allow port 80 to exit the network.

D.Modify the default gateway address and ping the server to test connectivity.

Question 317

You are tasked with creating a network that will accomplish the following requirements Requirements:
1) The remote sales team must be able to connect to the corporate network
2) Each department must have ONLY two PCs and a server
3) Each department must be segmented from each other
4) The following VLANs have been designated:
a) VLAN 2- Finance
b) VLAN 12- Sales
c) VLAN 22- Human Resources (HR)
Complete the network by dragging the required objects into the diagram
INSTRUCTIONS: Objects can be used multiple times and not all placeholders need to be filled

Question 318

A technician notices clients are receiving a 169.254.x.x IP address following the upgrade of a server. Which of the following ports should the technician check on the local server firewall?

A.ports 20 and 21

B.ports 80 and 443

C.ports 67 and 68

D.port 123 and 8080

Question 319

A technician is trying to identify the cause of an issue several wireless users are experiencing at an office. The office is in a square-shaped building, with four 802.11b WAPs with omnidirectional antennas located in the four corners of the building. Users near the center of the building report sporadic issues connecting to resources.
The technician checks the signal strength in the middle of the building and determines it is adequate. Which of the following is causing the reported issue?

A.The antenna types are incorrect, and unidirectional should be used.

B.There is channel overlap of the access points.

C.The power levels are set too low on the WAPs.

D.MAC filtering has not been updated.

Question 320

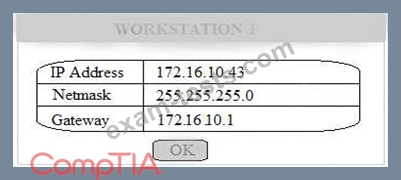

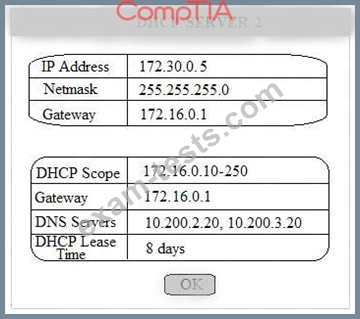

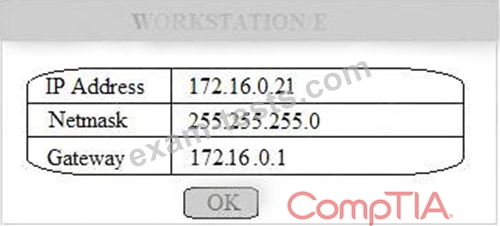

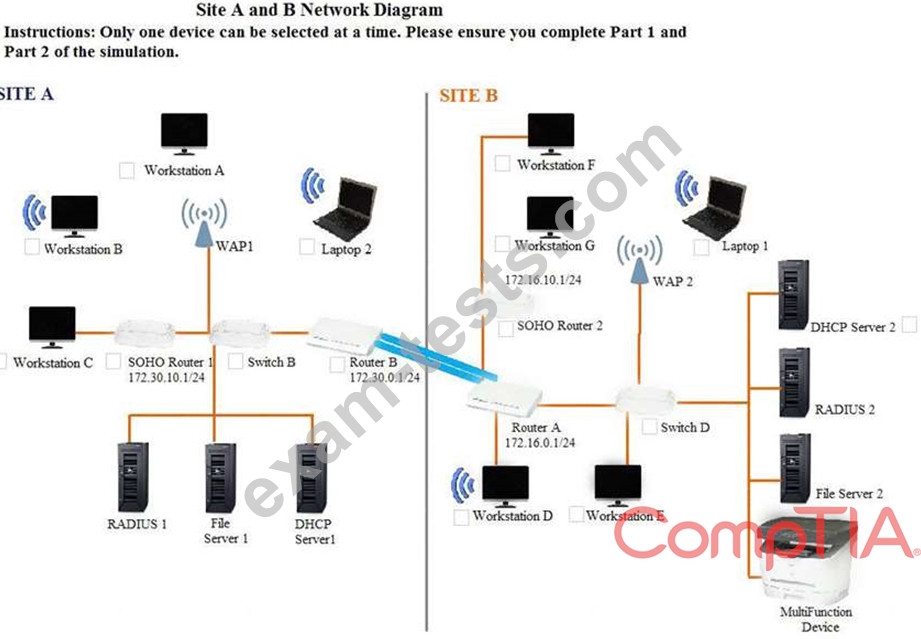

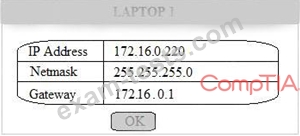

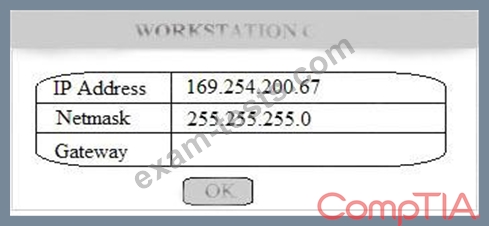

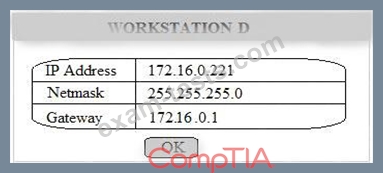

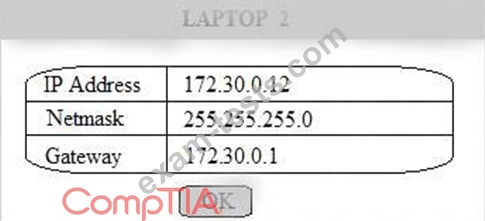

Multiple users are reporting that they are unable to access the network. The ENTIRE network is shown in the diagram. PCs are not statically assigned IP addresses. The following devices will display settings:
Review the settings and select the box in the diagram that identifies the device causing the issue. Only one device can be selected at a time.
After checking the device that is causing the issue, select the second tab in the lower left hand corner. Identify the reason as to why some users are unable to access the network.
Instructions:
When the simulation is complete, select the Done button to submit.
Part 1
