Free Access OMG.OMG-OCSMP-MBI300.v2022-11-18.q30 Practice Test (Page 4)

Question 11

Choose the correct answer.
A system engineer has created a SysML block structure for his system-of-interest. Two of the blocks (M and E) represent system-level abstractions of components that will be designed by a mechanical engineer and an electrical engineer m their respective computer-aided design (CAD) tools.
Given that the CAD models are wrapped as blocks B_mcad and B_ecad, what type of diagram should the system engineer use to quantitatively relate the properties of B_mcad and B_ecad to their system level abstractions M and E respectively?

A.an internal block diagram

B.an activity diagram

C.a parametric diagram

D.a block definition diagram

Question 12

Choose the correct answer.

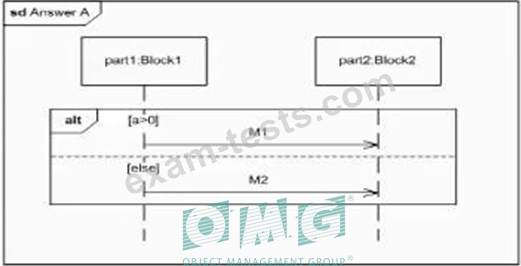

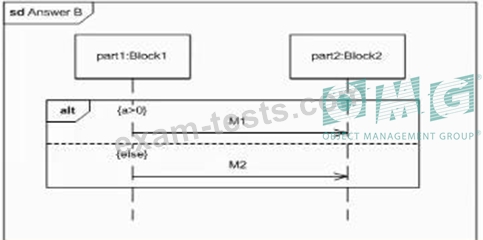

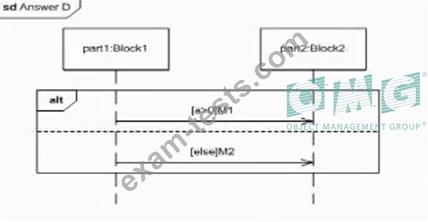

Block 1 has a value property 'a' part 1. typed by Block! sends the message Ml If a>0; otherwise it sends message M2.
Which diagram depicts this scenario?
A)

A.Option D

B.Option B

C.Option A

D.Option C

Question 13

Choose the correct answer
Which statement is true when modeling generalization?

A.Subclasses may add and redefine, but not remove existing features of a superclass

B.Subclasses may only redefine existing features of a superclass.

C.Subclasses may remove or redefine existing features, but not add features, to a superclass.

D.Subclasses may add, remove, and redefine existing features of a superclass

E.Subclasses may add and remove, but not redefine, existing features of a superclass

Question 14

Choose the correct answer
What is the key distinction between a profile and a meta model?

A.A metamodel Is the result of applying a profile to a user model to define new domain concepts.

B.A profile is a mechanism for defining stereotypes, which is not related to metamodels in any way.

C.A profile is a mechanism for extending existing concepts defined In a metamodel.

D.A metamodel is used to define the stereotypes and the properties of a profile.

Question 15

Choose the correct answer
How can the composition (black diamond) relationship be used to relate Requirements?

A.Composition allows role names to be assigned to sub-requirements thus providing a contextual reference

B.Requirements cannot use composition. They are not classifiers

C.Composition allows requirements to inherit properties and requirements relationships

D.Composition allows a particularly useful requirement to be reused by multiple higher level requirements or specifications

E.Composition allows a requirement to be decomposed into sub-requirements as long as they don't add to or change the meaning of the original requirement.
