Question 21

Choose the correct answer.

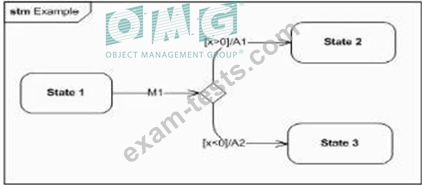

Given the following diagram:

How does state machine Example behave after receipt of event M1 with x equal to zero?

A.it arbitrarily enters either State 2 or State 3.

B.It remains in State 1.

C.Its behavior is not defined.

D.It terminates

Question 22

Choose the correct answer

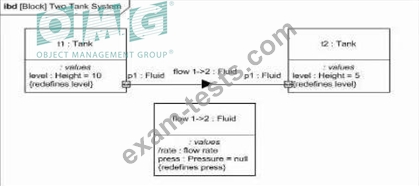

A system consists of two identical tanks each containing a different level of fluid. The tanks are connected together by a port at the bottom of each tank. This system is modeled m the following diagram:

Which statement is true?

A.Both port p1 on pan t1. and port p1 on t2. must have values defined for value properties /rate and press

B.The value property /rate : flow rate is a derived property, which accommodates calculating its value based on oilier properties

C.The block Fluid, which types item property flow 1 ->2. has a value property press : Pressure with a default value of null

D.The value of /rate for item property flow 1->2 is positive for flow from t1 to t2. and negative for How in the other direction

E.Parts t1 and t2 each use part instances to redefine the value of property level : Height

Question 23

Choose the correct answer
What is a best practice to define the package structure for a SysML model?

A.Each modeler can create packages for that engineer's specific purpose

B.SysML defines the package structure

C.The modeling tool creates the package structure

D.The modeling methodology defines the package structure.

Question 24

Choose the correct answer.

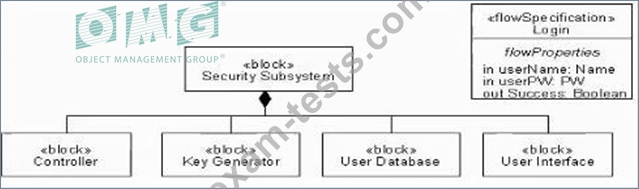

Given the following bdd fragment:

A user provides login credentials to the User Interface, and the Controller passes this information to the User Database The User Database in turn validates the user name and password (typed by PW In the <flow Specification>) and responds with a Boolean value indicating whether the login was successful. The Controller provides the password to the Key Generator if login was successful.
Which diagram correctly models these communications? If two or more options are correct, select the one that passes no unnecessary information between any two blocks If two or more correct options pass the same information between blocks, select the one with the fewest ports.

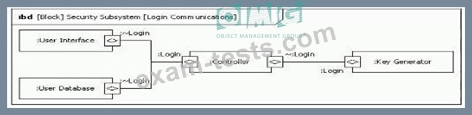

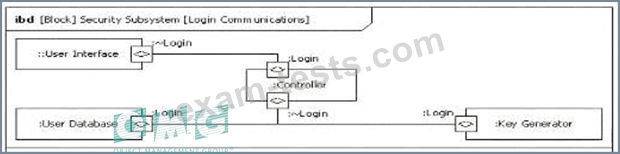

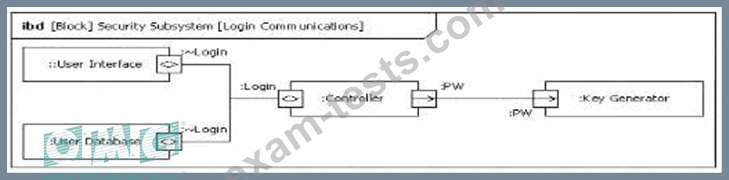

A)
