When extending a UML metaclass with a stereotype, it is critical to ensure that the metaclass and the stereotype are semantically related. This is because a stereotype is a way to extend the UML metamodel to create new kinds of model elements that can include additional semantics and constraints, but still adhere to the base behavior defined by the metaclass. The stereotype should be a meaningful specialization of the metaclass and not contradict its fundamental semantics. By keeping them semantically related, there is less need for additional constraints on the metamodel, and the resulting profile is more intuitive for users. This is consistent with the principles described in the UML 2 Specification, particularly in the sections on profiles and stereotypes.

In the sequence diagram 'GO', the event 'h receives x' is depicted before 'k sends q', as indicated by the solid arrow from 'g' to 'h' labeled 'x' and the dashed arrow from 'k' labeled 'q'. Since messages are processed in the order they are depicted from top to bottom, 'h' must receive 'x' before 'k' can send 'q'.
The other options (B, C, and D) cannot be determined to be always true based on the information provided in the diagram alone. Especially with asynchronous messages, the send event may occur before the corresponding receive event, and the diagram does not contain sufficient information about timing constraints or message processing durations to ascertain the exact ordering of these events.
References include:
* UML 2.5 Specification (formal/2017-12-05), specifically the sections regarding message sends and receives, lifelines, and the semantics of sequence diagrams.
* Introduction to UML 2 Sequence Diagrams by Scott W. Ambler, which provides insights into the interpretation of sequence diagrams and the flow of messages.

In UML, ValueSpecifications are used to specify the value of an element. The UML 2 Specification does not define a metaclass named StringExpression. Instead, it provides a metaclass named OpaqueExpression, which can be used when an expression is written in a language that is not directly interpretable by the model. Since there is no metaclass called StringExpression in the UML 2 Specification, there is no explicitly intended use for it within the UML metamodel. The absence of this metaclass suggests that any use of a concept called
"StringExpression" would not conform to standard UML 2 practices and would likely be part of an extension or profile, not the core UML metamodel.

In the context of UML 2.0 and the specifications around Decision Nodes, option C is the correct choice.
According to the UML 2.5 specification, when a Decision Node has an incoming control flow and a decisionInput, thedecisionInputmust have a single input parameter (in Parameter). This ensures that the decision node can evaluate the decision input using the value passed through the incoming control flow. This mechanism is crucial for decision-making processes within activity diagrams where decisions are made based on dynamic data provided at runtime.
References:
* UML 2.5 Specification: The specification details the properties and behaviors of Decision Nodes within activity diagrams, particularly emphasizing how decision inputs and their parameters are handled.

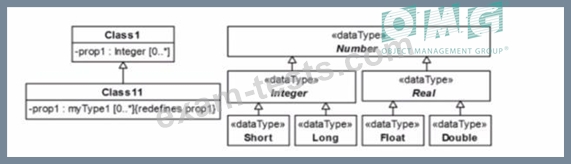

In the given diagram,myType1is shown redefiningprop1, which was originally of typeInteger. Given that Integeris a subtype ofNumber, andmyType1is used in a redefinition context, it implies thatmyType1must also be a subtype ofNumber. In UML, when a property is redefined, the redefining property must be type compatible with the property it redefines. Therefore,myType1could be substituted by any subtype ofNumber, which includesInteger,Real, and all their subtypes (Short,Long,Float,Double, etc.). This is based on the UML principle of type conformance in property redefinition, as specified in the UML 2.x Superstructure Specification.
