Question 16

Refer to the exhibit.

After applying IPsec, the engineer observed that the DMVPN tunnel went down, and both spoke-to-spoke and hub were not establishing. Which two actions resolve the issue? (Choose two.)

A.Configure the crypto isakmp key cisco address 192.1.1.1 on R2 and R3

B.Configure the crypto isakmp key cisco address 0.0.0.0 on R2 and R3.

C.Change the mode from mode tunnel to mode transport on R3

D.Change the mode from mode transport to mode tunnel on R2.

E.Remove the crypto isakmp key cisco address 10.1.1.1 on R2 and R3

Question 17

Refer to the exhibit.

After a security audit, the administrator implemented an ACL in the route reflector. The RR became unreachable from any router in the network. Which two actions resolve the issue? (Choose two.)

A.Remove the ACL entry 80.

B.Configure a link-local address on the Ethernet0/1 interface.

C.Permit ICMPv6 neighbor discovery traffic in the ACL.

D.Change the next hop of the default route to the link-local address of the default gateway.

E.Enable the ND proxy feature on the default gateway.

Question 18

Refer to the exhibit.

An engineer configured BGP between routers R1 and R3 The BOP peers cannot establish neighbor adjacency to be able to exchange routes. Which configuration resofves this issue?

A.R3
router bgp 6502
neighbor AB01:2011:7:100::1 ebgp-muttlhop 255

B.R3
router bgp 6502
address-family ipv6
neighbor AB01:2011:7:100::1 activate

C.R1
router bgp 6501
address-family ipv6
neighbor AB01:2011:7:100;:3 activate

D.R1
router bgp 6501 neighborAB01:2011:7:100::3ebgp-multihop255

Question 19

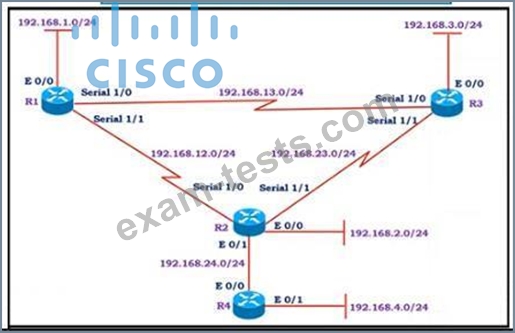

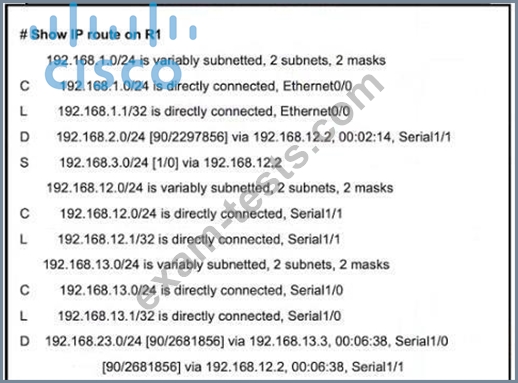

Refer to the exhibit.

All the serial between R1, R2, and R3 have the Same bandwidth. User on the 192.168.1.0/24 network report slow response times while they access resource on network 192.168.3.0/24. When a traceroute is run on the path. It shows that the packet is getting forwarded via R2 to R3 although the link between R1 and R3 is still up. What must the network administrator to fix the slowness?

A.Change the Administrative Distance of EIGRP to 5.

B.Add a static route on R1 using the next hop of R3.

C.Redistribute theR1 route to EIGRP

D.Remove the static route on R1.

Question 20

Refer to the exhibit.

An engineer has configured R1 as EIGRP stub router. After the configuration, router R3 failed to reach to R2 loopback address.
Which action advertises R2 loopback back into the R3 routing table?

A.Add a static route for R2 loopback address in R1 and redistribute it to advertise to R3.

B.Use a leak map on R1 that matches the required prefix and apply it with the distribute list command toward R3.

C.Use a leak map on R3 that matches the required prefix and apply it with the EIGRP stub feature.

D.Add a static null route for R2 loopback address in R1 and redistribute it to advertise to R3.
