Question 1

Refer to the exhibit. An engineer is troubleshooting an OSPF issue. Router 1 has a neighbor relationship with router 2. Only router 1 classful EIGRP routes can be seen on router 2. In order for all EIGRP routes to be redistributed correctly, which action should be taken?

A.Router 1 must have the keyword ospf-metric included in the redistribution command for all EIGRP routes to be redistributed.

B.Router 1 must have the keyword subnets included in the redistribution command for all EIGRP routes to be redistributed.

C.Router 1 must remove the AS number 1 from the redistribution command for all EIGRP routes to be redistributed.

D.Router 1 must have the keyword metric-type 1 included in the redistribution command for all EIGRP routes to be redistributed.

Question 2

A network engineer is troubleshooting OSPF multiarea. Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?

A.routing process enabled by default on all interfaces

B.show lp ospf topology command

C.hierarchical CLI

D.DR support for topology management

Question 3

Which two statements about route reflectors are true? (Choose two.)

A.Routes received from nonclient peers are reflected to route reflector clients as well as nonclient peers.

B.Routes received from nonclient peers are reflected to route reflector cluster as well as OSPF peers.

C.If a router received an iBGP route with the originator-ID attribute set to its own router ID, the route is discarded.

D.Routes received from a route reflector client is reflected to other clients and nonclient peers.

E.If a route reflector receives a route with a cluster-list attribute containing a different cluster ID, the route is discarded.

Question 4

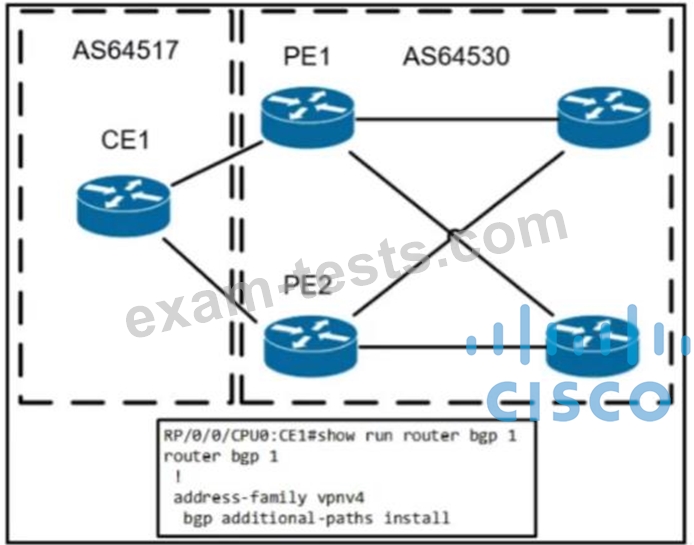

Refer to the exhibit.

A network operators configuring BGP PIC on CE1 on already established neighborships with PE1ana PE2 inside the fully converged MPLS network Which element needs to be implemented to make this feature function effectively?

A.The operator must ensure that all prefixes have the same next-hop from PE1 and PE2 for BGP PICA reserved BGP

B.community of 1 10 must be used to denote the PIC feature set to the routing protocol

C.BGP import export policies must be applied on all devices for the routes needing BGP for PIC

D.Bidirectional Forwarding Detection must be applied to the upstream facing BGP interfaces.

Question 5

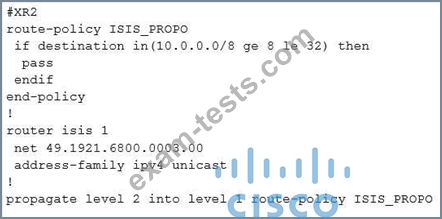

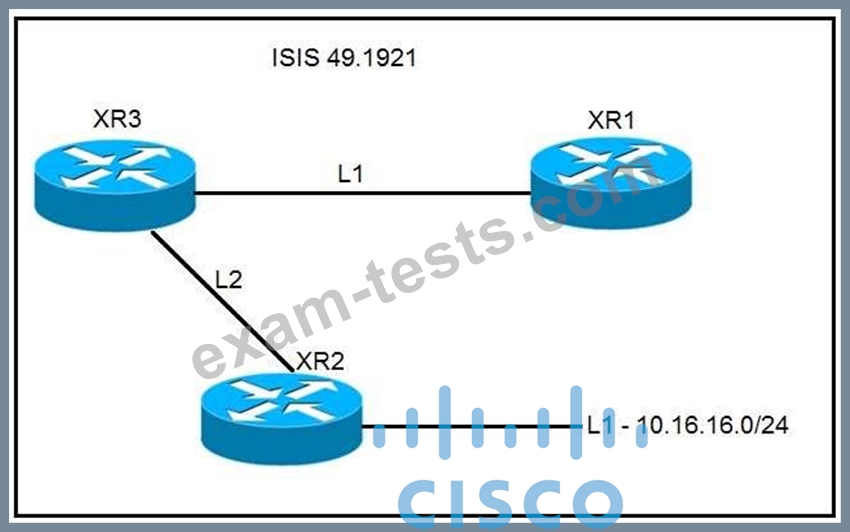

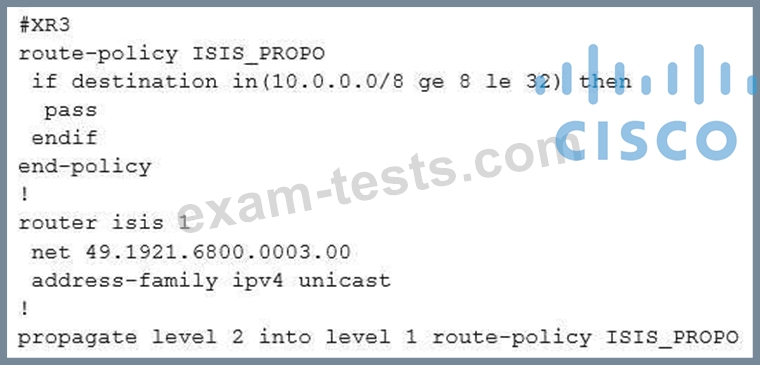

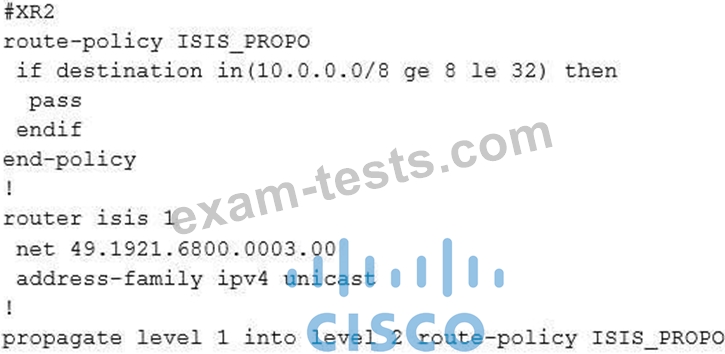

Refer to the exhibit. A network operator must inject a Level 1 route from XR2 (10.16.16.0/24) into the ISIS topology. Which configuration allows the injection in a way that XR3 and XR1 have a valid and working route for 10.16.16.0/24?
