Free Access Cisco.300-510.v2022-02-01.q126 Practice Test (Page 3)

Question 6

Refer to the exhibit. Which statement about this configuration is true?

A.Router 1 sends and receives multiple best paths from neighbor 192.168.1.1

B.Router 1 receives up to two paths from neighbor 192.168.1.1 for all routes in the same AS

C.Router 1 sends up to two paths to neighbor 192.168.1.1 for all routes

D.Router 1 receives only the best path from neighbor 192.168.1.1

Question 7

Refer to the exhibit.

An engineer is troubleshooting an OSPF issue. Router 1 has a neighbor relationship with router 2. Only router 1 classful EIGRP routes can be seen on router 2. In order for all EIGRP routes to be redistributed correctly, which action should be taken?

A.Router 1 must have the keyword metric-type 1 included in the redistribution command for all EIGRP routes to be redistributed.

B.Router 1 must have the keyword ospf-metric included in the redistribution command for all EIGRP routes to be redistributed.

C.Router 1 must remove the AS number 1 from the redistribution command for all EIGRP routes to be redistributed.

D.Router 1 must have the keyword subnets included in the redistribution command for all EIGRP routes to be redistributed.

Question 8

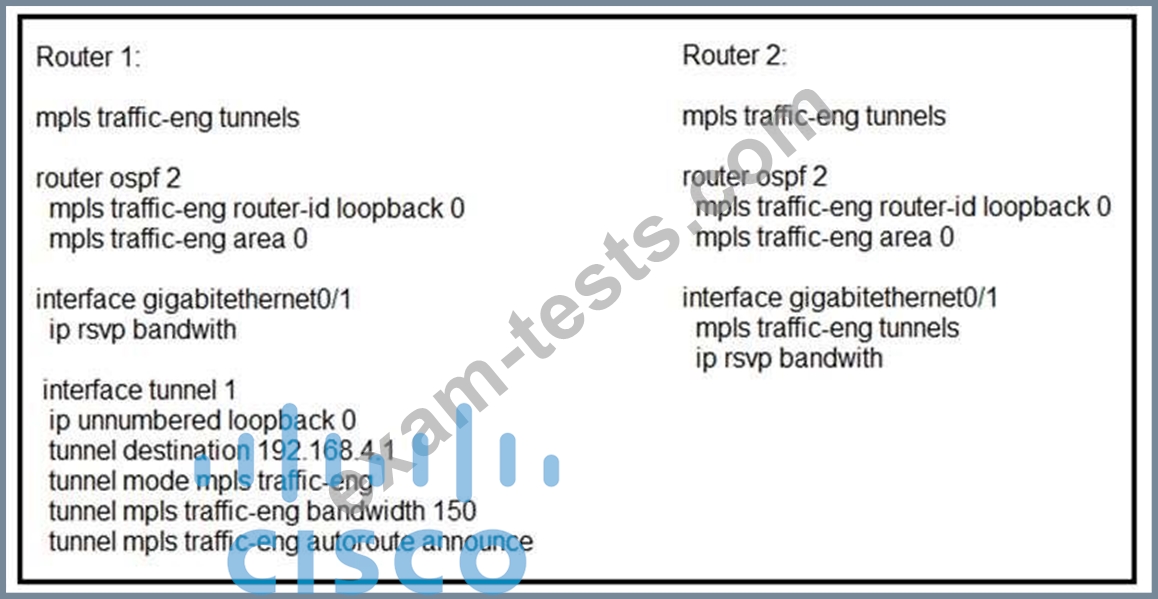

Refer to the exhibit. Router 1 has attempted to establish a Cisco MPLS TE tunnel to router 2, but the tunnel has failed. Which statement about this configuration is true?

A.Router 2 must have a tunnel interface created with router 1 as the destination

B.Router 1 must define an explicit path to router 2

C.Router 1 and router 2 must define the RSVP bandwidth reserved on the physical interfaces

D.Router 1 must have Cisco MPLS TE enabled on interface gigabitethernet0/1

Question 9

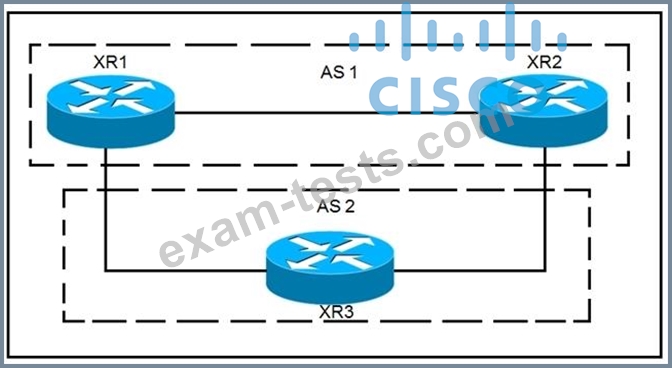

Refer to the exhibit. XR1 and XR2 are sending the prefix 10.11.11.0/24 to XR3.
A configured policy on XR1 is incorrectly prepending AS path 11 11 12 12 onto this prefix.
A network operator wants to add a policy onto XR3 that will not allow the falsely prepending prefix from being installed.

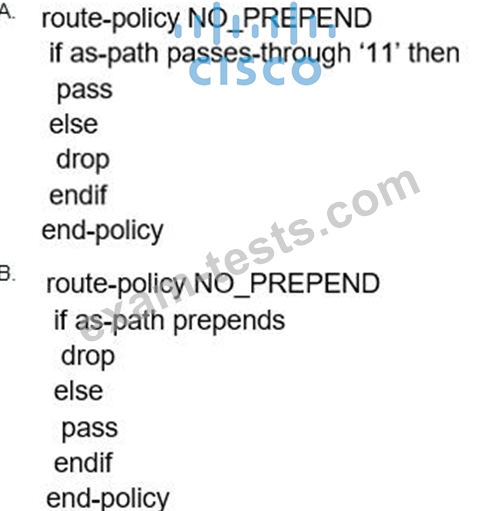

Which policy configuration applied to the XR3 neighbor configuration for XR1 can accomplish this requirement without impact to other or future received routes?
