Question 41

A network engineer is troubleshooting OSPF multiarea.
Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?

A.hierarchical CLI

B.show lp ospf topology command

C.DR support for topology management

D.routing process enabled by default on all interfaces

Question 42

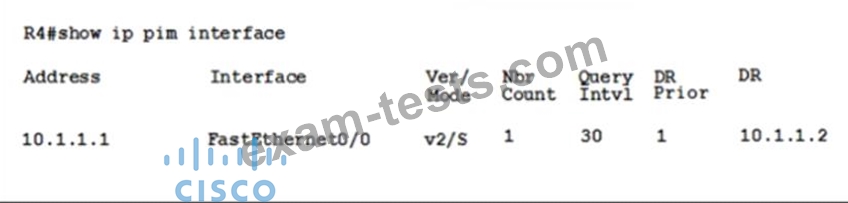

Refer to the exhibit.

Which two commands must the engineer configure for the company's PIM-PIM network to enable Auto-RP mappings to be sent over the FastEthernet0/0 interface without affecting normal operation? (Choose two)

A.enable dense mode

B.enable sparse-mode

C.enable Auto-RP announcements

D.enable auto-rp listener

E.enable sparse-dense mode

Question 43

Refer to the exhibit.

Router 1 and Routed have shared routes in the OSPF database but the routes are missing from their routing tables. Checking me prefix-list configuration on both routers, the engineer confirmed all networks are allowed What action should the engineer take to fa the problem?

A.Switch the DR and BDR roles between the two routers

B.Configure interface Senal1/0 on Router1 as a point-to-point interface

C.Configure the two routers with different hello and dead timer values

D.Configure the two routers with different process IDs

Question 44

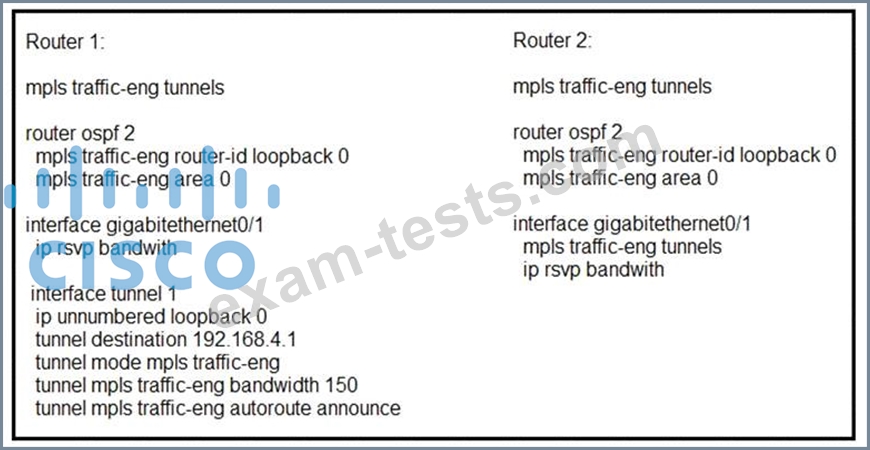

Refer to the exhibit.

Router 1 has attempted to establish a Cisco MPLS TE tunnel to router 2, but the tunnel has failed. Which statement about this configuration is true?

A.Router 1 must define an explicit path to router 2

B.Router 1 and router 2 must define the RSVP bandwidth reserved on the physical interfaces

C.Router 1 must have Cisco MPLS TE enabled on interface gigabitethernet0/1

D.Router 2 must have a tunnel interface created with router 1 as the destination

Question 45

Which output from the show isis interface command helps an engineer troubleshoot an IS-IS adjacency problem on a Cisco IOS-XR platform?

A.priority

B.hello interval

C.circuit type

D.metric
