Question 46

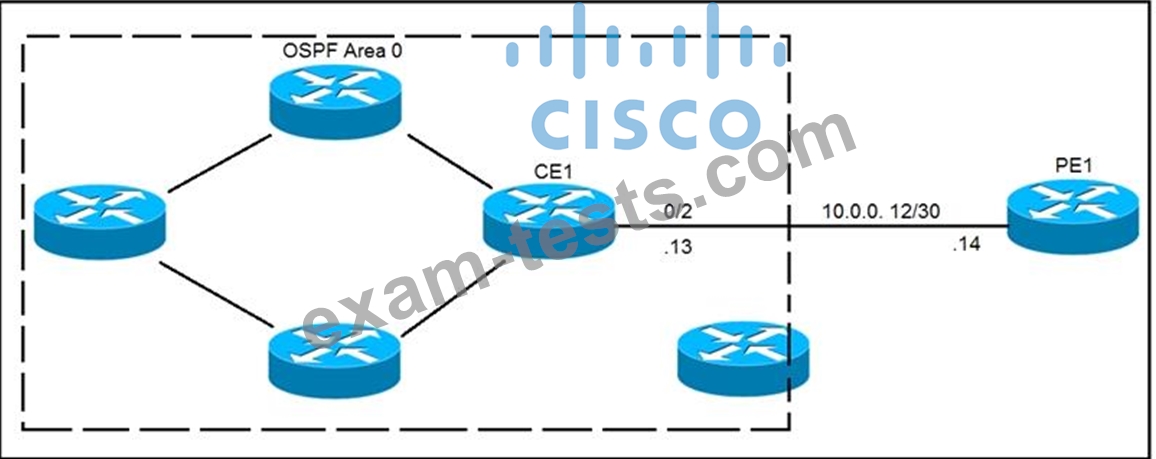

Refer to the exhibit.

CE1 is the gateway router into the provider network via PE1. A network operator must inject a default route into OSPF area 0. All devices inside area 0 must be able to reach PE1. Which configuration achieves this goal?

A.Option A

B.Option B

C.Option C

D.Option D

Question 47

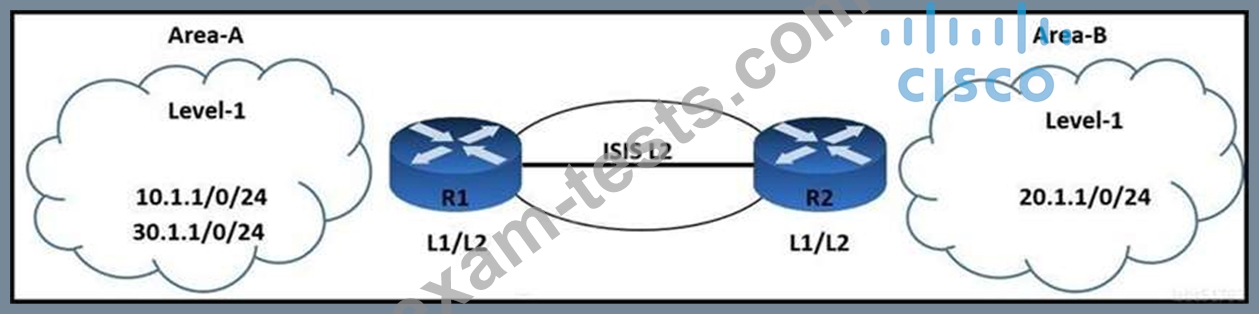

Refer to the exhibit. An engineer is troubleshooting IS-IS configuration between two areas. IS-IS Area-A network 30.1.1.0/24 is leaked into IS-IS Area-B. R2 is failing to filter the route updates from network 10.1.1.0/24. Which configuration must the engineer apply to resolve the issue?

A.R2(config)# ip prefix-list List2 seq 5 deny 10.1.1.0/24
R2(config)# interface fastethernet 0/0
R2(config-if)# ip router isis 100
R2(config-if)# router isis 100
R2(config-router)# distribute-list gateway List2 in

B.R2(config)# ip prefix-list List1 seq 3 deny 10.1.1.0/24
R2(config)# ip prefix-list List1 seq 5 permit 30.1.1.0/24 ge 25 1e
R2(config)# ip prefix-list List1 seq 10 permit 0.0.0.0/le 32
R2(config)# interface fastethernet 0/0
R2(config-if)# ip router isis 122
R2(config-if)# router isis 122
R2(config-router)# distribute-list prefix List1 in

C.R1(config)# ip prefix-list List2 seq 5 deny 10.1.1.0/24
R1(config)# interface fastethernet 0/0
R1(config-if)# ip router isis 100
R1(config-if)# router isis 100
R1(config-router)# distribute-list gateway List2 in
R (config-if)# router isis 150
R1(config-router)# distribute-list route-map Map1 in

D.R2(config)# access-list 101 deny ip any 10.1.1.0 0.0.0.127
R2(config)# access-list 101 permit ip any 30.1.1.0 0.0.0.63
R2(config)# access-list 101 deny ip any 0.0.0.0 0.0.0.0
R2(config)# interface fastethernet 0/0
R2(config-if)# ip router isis 121
R2(config-if)# router isis 121
R2(config-router)# distribute-list 101 in

Question 48

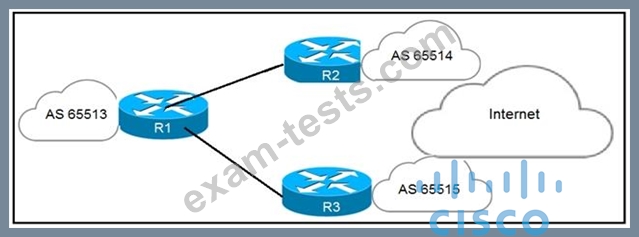

Refer to the exhibit.

An engineer has successfully fixed BGP peering issue. R1 has an established eBGP peering with R2 and R3. Which mechanism should the engineer apply in order to steer the traffic correctly?

A.The local preference attribute can be applied on R3 to influence AS 65513 to use AS 65515 as the secondary path.

B.The weight attribute can be applied on R2 to influence AS 65513 to use AS 65515 as the primary path.

C.The IGP metric can be manipulated on R1 to allow traffic to be load balanced between R2 and R3.

D.The MED attribute can be applied on R2 to influence R1 to use it as the primary path.

Question 49

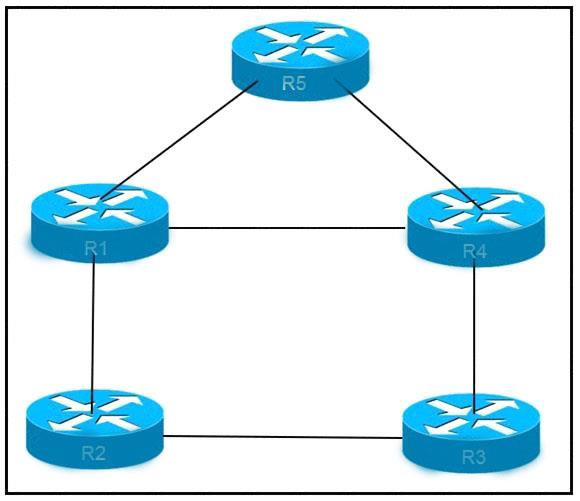

Refer to the exhibit.

An engineer is addressing an IS-IS design issue which is running within the topology. All links are running on FastEthernet, except the link between R5 and R4, which is Gigabit Ethernet. Which statement about the design is true?

A.R4 prefer to reach R5 using R1 as the next hop

B.R5 prefers to use R4 as the next hop for all routes

C.All links have equal cost if the default metric is used

D.R1 prefer to use R5 as the next hop to reach R4

Question 50

Which two statements about mapping multicast IP addresses to MAC addresses are true?
(Choose two.)

A.The router performs the mapping before it hands the packet off to a switch

B.All multicast MAC addresses end with 0x0100.5E

C.All mapped multicast MAC addresses begin with 0x0100.5E

D.The mapping process may generate overlapping addresses, which can cause receivers to receive unwanted packets

E.All destination MAC addresses begin with an octet of binary 1s
