Free Access Cisco.300-510.v2022-08-02.q105 Practice Test (Page 2)

Question 1

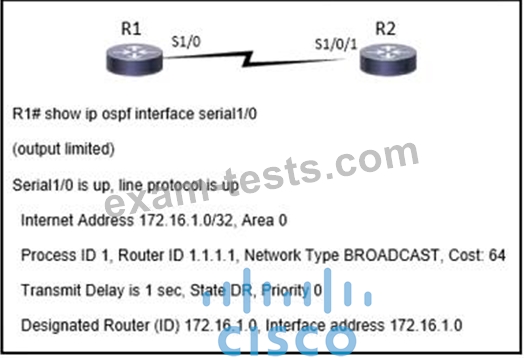

Refer to the exhibit.

While configuring router 2 with all the default values, a network engineer cannot see any route received in router 1. How should the engineer solve the issue?

A.Set up a priority different than 0 in the interface.

B.Modify the IP address or mask of the interface to a valid one.

C.Modify the router ID to be the interface IP on the serial.

D.Set the network type in S1/0 to point-to-point.

Question 2

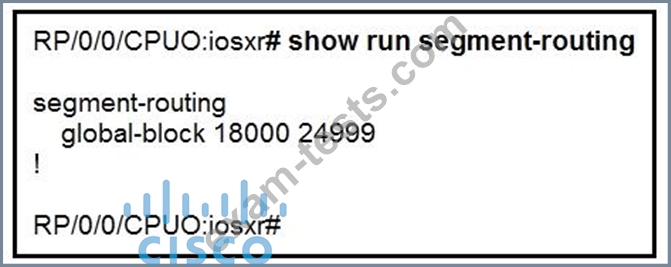

Refer to the exhibit.

A network engineer implemented this segment routing configuration. Which statement about the output is true?

A.This range conflicts with the segment routing local block range.

B.The device must be reloaded for these ranges to be allocated and used.

C.The default segment routing global block range is being used on this device.

D.A nondefault segment routing global block range is being used on this device.

Question 3

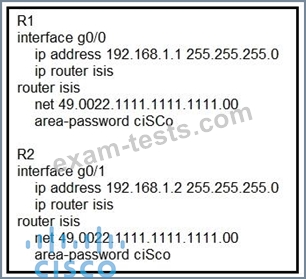

Refer to the exhibit. After you applied these configurations to routers R1 and R2, the two devices could not form a neighbor relationship.
Which reason for the problem is the most likely?

A.The two routers have different IS-types.

B.The two routers cannot authenticate with one another.

C.The two routers have the same network ID.

D.The two routers have the same area ID.

Question 4

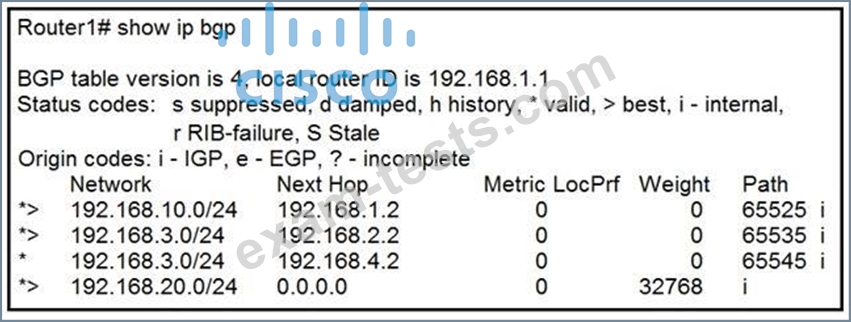

Refer to the exhibit. Which attribute can router 1 alter so that only other iBGP peers prefer to use
192.168.4.2 as the next hop for route 192.168.3.0/24?

A.origin

B.weight

C.MED

D.local preference

Question 5

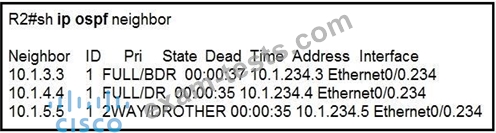

Refer to the exhibit. Why is neighbor 10.1.5.5 stuck in "2WAY" state?

A.Router ID 10.1.5.5 is not reachable from R2

B.OSPF authentication has failed between R2 and 10.1.5.5

C.It is an expected behavior when OSPF network type is broadcast

D.OSPF parameters (Area ID or hello interval) are mismatched between R2 and 10.1.5.5
