Question 21

What are three requirements for a static IPv6-in-IPv4 tunnel? (Choose three.)

A.Each tunnel endpoint must support IPv4 and IPv6.

B.A static IPv4 address must be configured.

C.A dynamic IPv4 address must be configured.

D.A dynamic IPv6 address must be configured.

E.Cisco Express Forwarding must be enabled.

F.A static IPv6 address must be configured.

Question 22

Refer to the exhibit.

Routers R1 and R2 cannot form a neighbor relationship, but the network is otherwise configured correctly and operating normally. Which two statements describe the problem? (Choose two.)

A.The two routers are in the same area

B.The two routers have the same network ID

C.The two routers are in different areas

D.The two routers have password mismatch issues

E.The two routers are in different subnets

Question 23

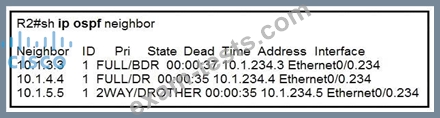

Refer to the exhibit.

Why is neighbor 10.1.5.5 stuck in "2WAY" state?

A.OSPF parameters (Area ID or hello interval) are mismatched between R2 and 10.1.5.5

B.Router ID 10.1.5.5 is not reachable from R2

C.OSPF authentication has failed between R2 and 10.1.5.5

D.It is an expected behavior when OSPF network type is broadcast

Question 24

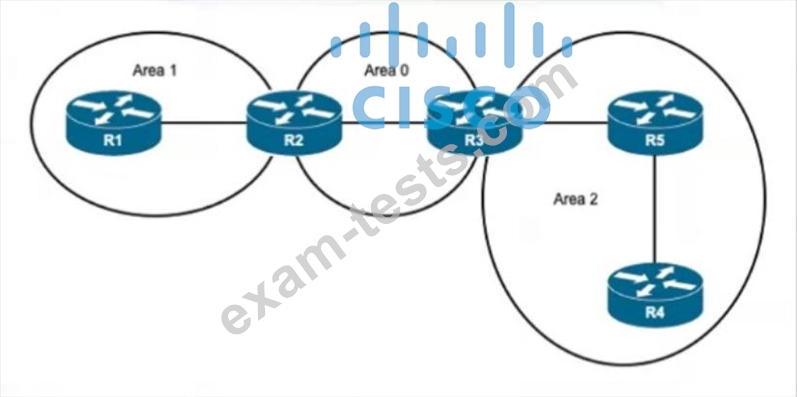

Refer to the exhibit.

A network engineer applied configuration on R5 to summarize all OSPF routes, but R4 is still receiving specific routes from R5. The engineer has confirmed that both R5 and R4 routers are configured with correct summarization configuration but R5 Is not sending the summary routes What action must the engineer take to fix the problem?

A.Move R4 and R5 in separate areas as now they maintain the same link-state database

B.Remove summarization configuration on R5 and configure it on R4

C.Clear link-state database on both R4 and R5 routers for summarization to work

D.Configure a sham link between R4 and R5 to support summarization within Area 2

Question 25

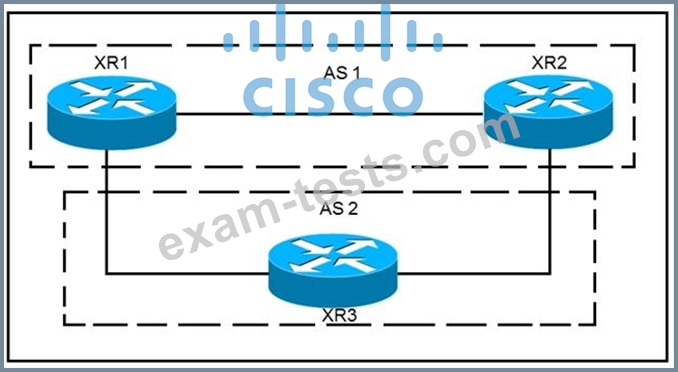

Refer to the exhibit.

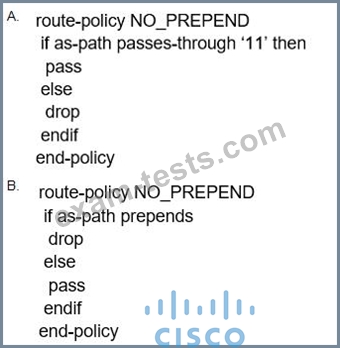

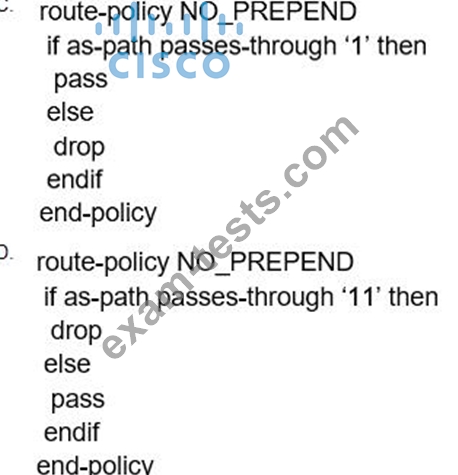

XR1 and XR2 are sending the prefix 10.11.11.0/24 to XR3. A configured policy on XR1 is incorrectly prepending AS path 11 11 12 12 onto this prefix. A network operator wants to add a policy onto XR3 that will not allow the falsely prepending prefix from being installed. Which policy configuration applied to the XR3 neighbor configuration for XR1 can accomplish this requirement without impact to other or future received routes?
