Free Access Nokia.4A0-C02.v2022-05-05.q224 Practice Test (Page 4)

Question 11

Which of the following statements is true? Choose the best answer.

A.Any provider core router (P or PE) may forward customer packets to their destination without the presence of a route to that destination

B.The egress PE router may forward customer packets to their destination without the presence of a route to that destination

C.The ingress PE router may forward customer packets to their destination without the presence of a route to that destination

D.A P router may forward customer packets to their destination without the presence of a route to that destination

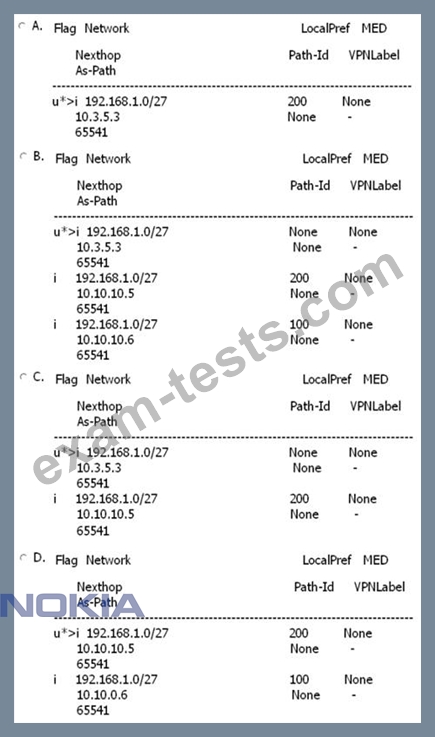

Question 12

Click the exhibit.

Router R1 is a route reflector with clients R2, R5 and R6. Prefixes advertised by router R5 have a local preference of 200. Router R3 advertises the prefix 192.168.1.0/27 to routers R5 and R6.
Assuming that none of the routers in AS 65540 is configured with "advertise-external", what is the expected output of "show router bgp routes" on router R5?

A.Option B

B.Option A

C.Option C

D.Option D

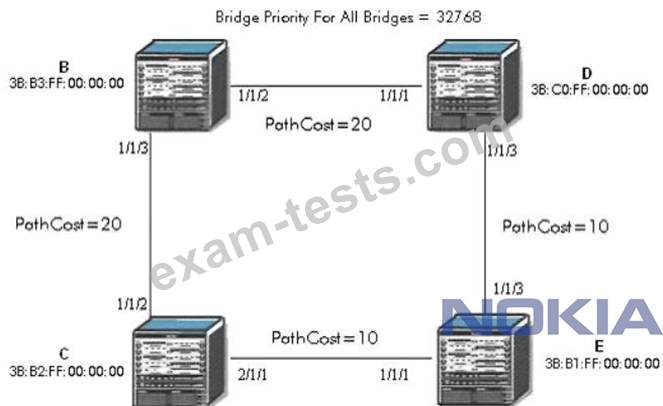

Question 13

Click on the exhibit below.

Which bridge will become the root bridge?

A.Bridge C

B.Bridge E

C.Bridge B

D.Bridge D

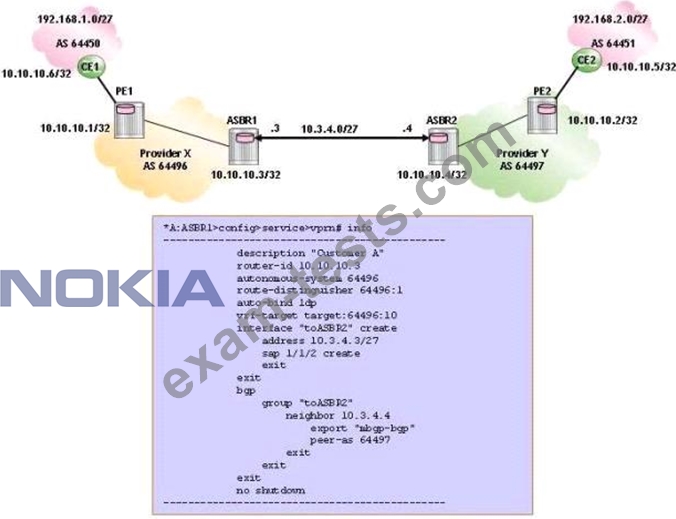

Question 14

Click the exhibit.

Which of the following about the inter-AS model A VPRN configuration on ASBR1 is TRUE?

A.The neighbor address should be 10.10.10.4 under the BGP configuration for successful VPRN operation.

B.The "family vpn-ipv4" command is required under the BGP configuration for successful VPRN operation.

C.The VPRN configuration on ASBR1 is correct.

D.An export policy is not required for successful VPRN operation.

E.The route-distinguisher value must be 64496:10 for successful VPRN operation.

Question 15

Which of the following about BGP loops in a VPRN environment is TRUE?

A.BGP loops are detected in a VPRN when the customer has separate sites using the same BGP autonomous system number.

B.Traditional BGP loop detection mechanisms are unable to detect a loop in a VPRN scenario.

C.The Alcatel-Lucent 7750 SR rejects routes containing AS_PATH loops by default.

D.When "remove-private" is configured at a PE, all routes received from the associated CE will have private AS numbers removed.
