Free Access Nokia.4A0-C02.v2022-05-05.q224 Practice Test (Page 8)

Question 31

Which of the following statements regarding the default scheduler in the Alcatel-Lucent 7750 SR are TRUE? (Choose two)

A.Orphaned queues will be scheduled out of the BE queue.

B.There are a maximum of 8 levels of priority serviced using a round-robin algorithm.

C.A queue servicing EF and AF traffic will require explicit configuration to set the queue to expedited.

D.The H1 internal forwarding class will receive its CIR before AF traffic.

E.The default scheduler will spend an equal amount of time in each queue, as long as there is traffic present

Question 32

In the image shown above, the SAP-ingress policy is applied properly to a Nokia 7750 SR. A traffic stream is received from an IP address of 192.168.1.1 with DSCP set to EF. Which forwarding class and priority level is used for this traffic stream?

A.FC H1, high

B.FC EF, low

C.FC H2, low

D.FC EF, high

Question 33

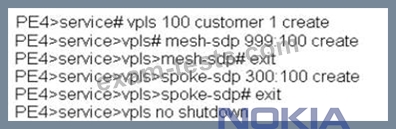

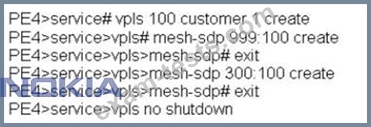

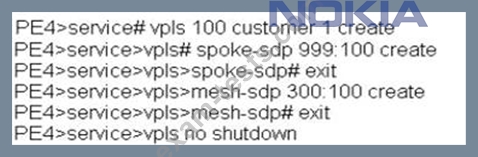

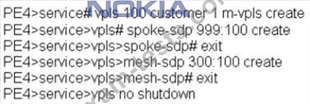

Study the network diagram. Which of the following configurations is correct for user VPLS 100 on PE4?

A.Option A

C.Option C

D.Option D

E.Option B

Question 34

An Alcatel-Lucent 7750 SR receives a route from an eBGP peer with a MED value of 500. What MED value is sent to iBGP peers?

A.The IGP cost

B.100

C.500

D.None

Question 35

Click the exhibit.

Router R6 is a route reflector with clients R1, R2, R4 and R5. R4 receives three routes from router R6 and is configured with ECMP 3. Given the following BGP configuration on router R4, how many primary and backup paths will be present in router R4's BGP routing table?

A.One primary path and two backup paths.

B.Two primary paths and one backup path.

C.Three primary path and one backup path,

D.Three primary paths.
