Question 86
Click the exhibit.

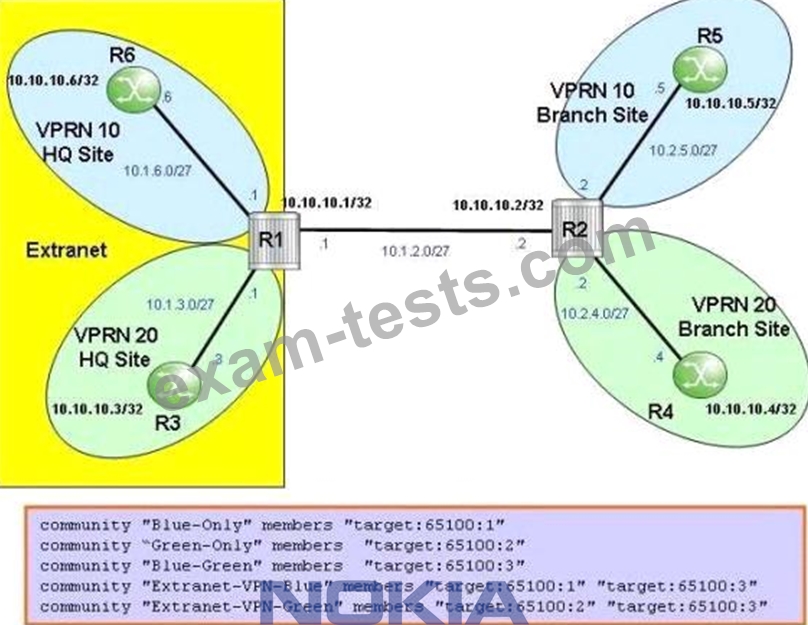

The headquarter sites of VPRN 10 and VPRN 20 ate part of an extranet VPRN. Which of the following communities are included in the export policy applied to VPRN 10 on router R1?
The headquarter sites of VPRN 10 and VPRN 20 ate part of an extranet VPRN. Which of the following communities are included in the export policy applied to VPRN 10 on router R1?
Question 87
RSTP blocks a spoke-sdp using a management VPLS. Is traffic affected on an ES using the same transport SDP?
Question 88
Router R1 is a route reflector with clients R2, R5 and R6. Prefixes advertised by router R5 have a local preference of 200. Router R3 advertises the prefix 192.168.1.0/27 to routers R5 and R6.

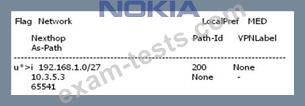

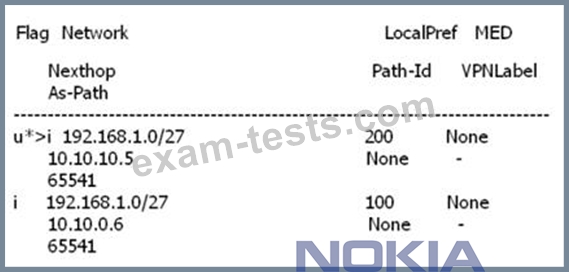

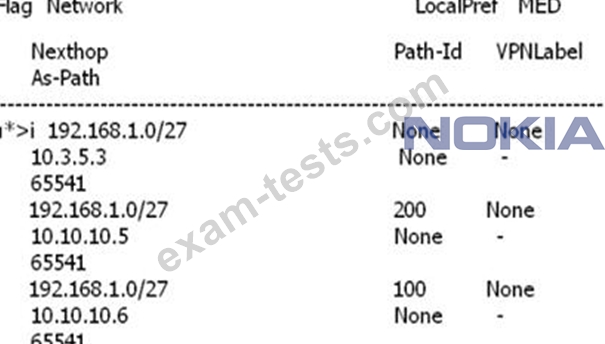

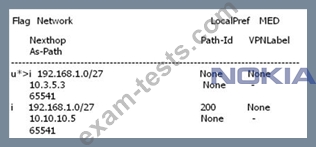

Assuming that none of the routers in AS 65540 is configured with "advertise-external", what is the expected output of "show router bgp routes" on router R5?
Assuming that none of the routers in AS 65540 is configured with "advertise-external", what is the expected output of "show router bgp routes" on router R5?
Question 89
Router R1 is advertising prefix 192.168.1.0/27 with community "no-export. Which routers will receive an update for that prefix?
Question 90
Which of the following prefix-lists is the most specific match for prefixes 192.168.64.1/20 and
192.168.32.5/19?
192.168.32.5/19?
