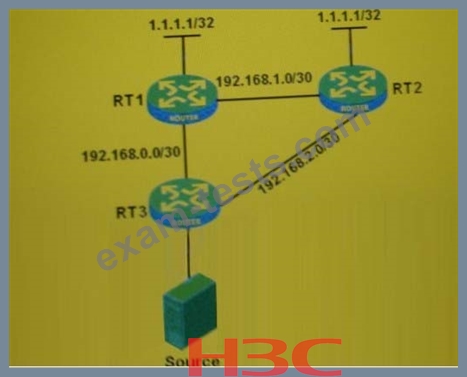

In the networking shown in the figure, the PIM SM protocol runs between RT1, RT2 and RT3, the RP is 1.1.1.1, and there is a downstream receiver RT3 connected to a multicast source, check the RT3 unicast routing table as follows:
[RT3]display ip routing-table
Routing Tables: Public
Destinations: 10 Routes: 10
Destination/MaskProtoPreCost NextHop Interface
1.1.1.1/320SPF 10 1562 192.168.0.1 S0/2/0
127.0.0.0/8 Direct 00127.0.0.1 InLoopO
127.0.0.1/32Direct 00127.0.0.1 InLoopO
192.168.0.0/30Direct 00192.168.0.2 S0/2/0
192.168.0.1/32Direct 00192.168.0.1 S0/2/0
192.168.0.2/32Direct 00127.0.0.1 InLoopO
192.168.1.0/300SPF 10 3124 192.168.2.1 so/2/1
192.168.2.0/30Direct 00192.168.2.2 so/2/1
192.168.2.1/32Direct 00192.168.2.1 so/2/1
192.168.2.2/32Direct 00127.0.0.1 InLoopO
Then, after the RP sends the registration stop message, which of the following routers have (S, G) entries?

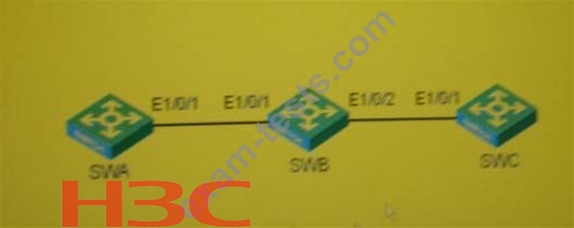

In the switching network as shown in the figure, all three switches have only default VLAN1, the interconnection ports of the three switches are Trunk, and all VLANs are allowed to pass, and the three switches have the global and port GVRP functions enabled. VLAN 10 is created on the switch SWA, VLAN 20 is created on the switch SWC, and the GVRP registration mode of the Ethernet 1/0/1 port is set to Forbidden on the switch SWA, and the display vlan SWC is executed on the SWC. The existing VLANs on SWC are available (choose one or Multiple)

The router runs the IGMPV2 protocol, and the GroupAddress in the Query message received by the host in the directly connected LAN may be (choose one or more)

The two routers are connected through a LAN to form a VRRP backup group, and the configuration on each interface is as follows:
[RTA-GigabitEthernet1/0]display this
ip address 192.168.0.252 255.255.255.0
vrrp vrid 1 virtual-ip 192.168.0.254
[RTB-GigabitEthernet1/0]display this
ip address 192.168.0.253 255.255.255.0
vrrp vrid 1 virtual-ip 192.168.0.254
It can be known from the above information

The customer's two switches SWA and SWB are connected by seven Ethernet cables and configured with static link aggregation. The corresponding ports on the switch SWA are Ethernet 1/0, Ethernet 1/0/2, and Ethernet 1/0/3 , Ethernet 1/0/4, Ethernet 1/0/5, Ethernet1/0/6, Ethernet 1/0/7, the configuration method is to configure according to the order of the ports. If the switch SWA, SWB each aggregation group only supports 6 ports ,then
