Free Access Huawei.H12-831_V1.0-ENU.v2026-01-17.q104 Practice Test (Page 3)

Question 6

What types of Link Types are included in the Router LSA in OSPF?

A.Vlink

B.TransNet

C.Stub Net

D.P-2-P

Question 7

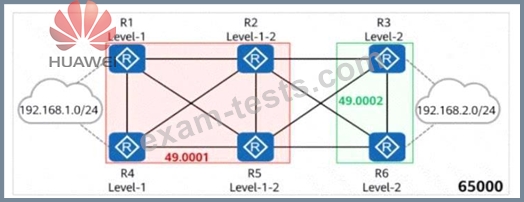

On the network shown in the figure, IS-IS runs on R1, R2, R4, and R5, and the area ID is 49.0001. IS-IS runs on R3 and R6, and the area ID is 49.0002. The import-route isis level-2 into level-1 command is configured on R2 and R5. In AS 65000, R1, R3, R4, and R6 each establish IBGP peer relationships with R2 and R5. R2 and R5 are RRs, and R1, R4, R3, and R6 are clients. The IBGP peer relationships are established using Loopback0. The IP address of Loopback0 on each router is 10.0.X.X/32, and the router ID is 10.0.X.X, where X is the number of the router. R1 and R4 import the external route 192.168.1.0/24 to BGP through the import- route command, and R3 and R6 import the external route 192.168.2.0/24 to BGP through the import-route command. Which of the following statements are true?

A.The routing table of R4 contains two equal-cost default routes.

B.The routing table of R1 contains two equal-cost default routes.

C.The routing table of R1 contains the route 192.168.2.0/24.

D.The route 192.168.2.0/24 in the routing table of R4 has two different outbound interfaces.

Question 8

During the process of viewing the debug input through the SSH terminal, there is a lot of pop-up information. Which of the following operations can make the monitor terminal no longer pop up the debug message?

A.Open Notepad and enterundo terminal monitor,Copy the command line and paste it intoMonitorinterface

B.Open Notepad and enterundo debugging all,Copy the command line and paste it intoMonitorinterface

C.exit currentMonitorinterface, re-SSHLog in to the device to open a new oneMonitorinterface

D.Open Notepad and enterundo terminal debugging,Copy the command line and paste it intoMonitorinterface

Question 9

Which of the following descriptions is wrong?

A.LSP is divided into static LSP and dynamic LSP. The static LSP is manually configured by the administrator, and the dynamic LSP is dynamically established using the label protocol

B.The principle to be followed for manual label allocation is: the value of the outgoing label of the upstream node is the value of the incoming label of the downstream node

C.The LSP established by statically assigning labels can also be dynamically adjusted according to network topology changes without the intervention of the administrator

D.Dynamic LSP is dynamically established through label distribution protocols, such as MP-BGP, RSVP-TE, LDP

Question 10

Regarding the description of the MPLS forwarding mechanism, which of the following is correct? (Multiple choice)

A.The system automatically assigns an ID to the upper-layer application that uses the tunnel, also known as Tunnel ID

B.If the Tunnel ID value is 0x0, and then enter the MPLS forwarding process

C.When an IP packet enters the MRLS domain, the FIB table is the first to be checked

D.If the Tunnel ID value is not 0x0, and then enter the normal IP forwarding process
