Free Access Juniper.JN0-348.v2022-03-11.q104 Practice Test (Page 10)

Question 41

You must implement filter-based forwarding. You need to direct traffic from 192.168.1.0/24 through vr1 and traffic from 10.210.0.128/26 through vr2.
Which configuration is correct in this scenario?

A.firewall {
family inet {
filter fbf-filter1 {
term match-192-subnet {
from {
source-address {
192.168.1.0/24;
}
}
then {
routing-instance vr1;
}
}
term match-10-subnet {
from {
source-address {
10.210.0.128/26;
}
}
then {
routing-instance vr2;
}
}
}
}
}

B.firewall {
family inet {
filter fbf-filter1 {
term match-192-subnet {
from {
source-address {
192.168.0.0/24;
}
}
then {
routing-instance vr1;
}
}
term match-10-subnet {
from {
source-address {
10.210.0.128/27;
}
}
then {
routing-instance vr2;
}
}
}
}
}

C.firewall {
family inet {
filter fbf-filter1 {
term match-192-subnet {
from {
source-address {
192.168.1.0/26;
}
}
then {
routing-instance vr2;
}
}
term match-10-subnet {
from {
source-address {
10.210.0.128/26;
}
}
then {
routing-instance vr1;
}
}
}
}
}

D.firewall {
family inet {
filter fbf-filter1 {
term match-192-subnet {
from {
source-address {
192.168.2.0/26;
}
}
then {
routing-instance vr2;
}
}
term match-10-subnet {
from {
source-address {
10.210.1.128/26;
}
}
then {
routing-instance vr1;
}
}
}
}
}

Question 42

There is a GRE tunnel configured over the Internet between Router-1 and Router-2. An OSPF adjacency is configured over this GRE tunnel. However, the OSPF adjacency briefly reaches the Full state before it is torn down. This cycle repeats indefinitely.
Which two actions would you perform to solve this problem? (Choose two.)

A.Configure OSPF to not export the tunnel endpoint interface routes.

B.Configure the GRE interfaces on both routers as passive interfaces in OSPF.

C.Configure the physical WAN interfaces on both routers as passive OSPF interfaces.

D.Configure static routes to the tunnel endpoints.

Question 43

Click the Exhibit button.

You are monitoring your IS-IS router and issue the command shown in the exhibit.
Which two statements are true in this scenario? (Choose two.)

A.The name of the local device is r1.

B.The loopback address of the local router is 10.100.0.1.

C.The name of the remote device is r1.

D.The loopback address of the local router is 5.0.0.100.

Question 44

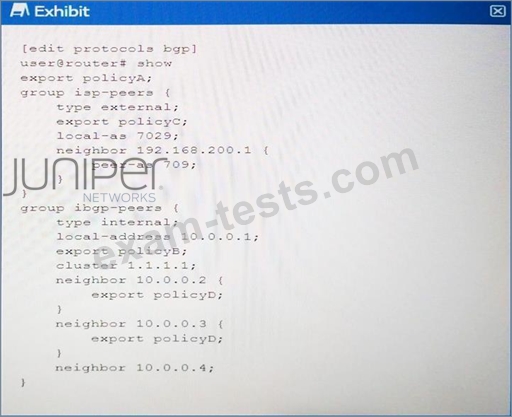

Click the Exhibit button. Referring to the exhibit, which two statements are true?

A.The policy A routing policy takes precedence over all other policies.

B.No policy is used for neighbor 10.0.0.4.

C.The policy B routing policy is used by neighbor 10.0.0.4.

D.The policy D routing policy is the only policy used by neighbor 10.0.0.2.

Question 45

Which two characteristics are true for EBGP peerings? (Choose two.)

A.EBGP connects peer devices in the same autonomous system.

B.EBGP peers must be directly connected.

C.EBGP peers can be connected over a multihop connection.

D.EBGP connects peer devices in two different autonomous systems.
