Question 31

Exhibit.
Referring to the exhibit, all users connected to the same VLAN can communicate with each other, but not with users on other VLANs in this network.
What must be configured to enable communication between the VLANs?

A.A single logical IRB interface must be created and assigned to all three VLANs

B.A separate routing device is required to forward traffic between the configured VLANs.

C.A logical IRB interface must be created and assigned to each VLAN.

D.The switch ports to which the users are connected should be configured as trunk ports.

Question 32

Click the Exhibit button.

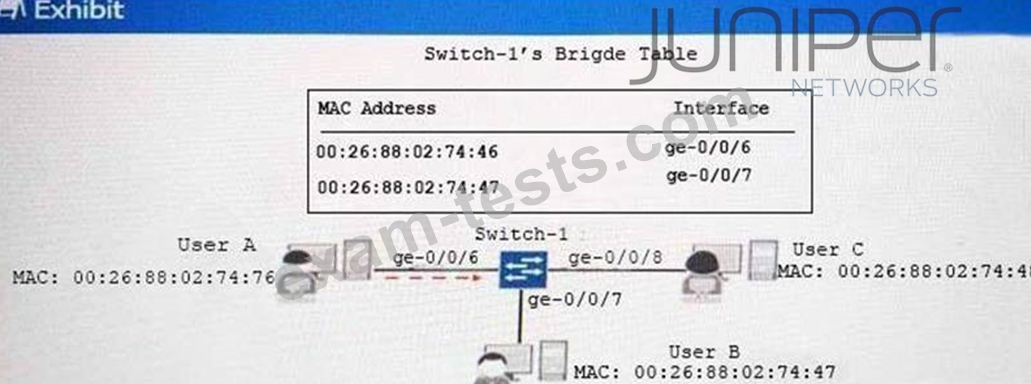

Switch-1 in the exhibit receives a packet from User A with a destination MAC address of 00:26:88:02:74:48.
Which statement is correct?

A.Switch-1 sends the packet out ge-0/0/8 only.

B.Switch-1 floods the packet out ge-0/0/7 and ge-0/0/8.

C.Switch-1 floods the packet out ge-0/0/6, ge-0/0/7, and ge-0/0/8.

D.Switch-1 sends the packet out ge-0/0/7 only.

Question 33

Click the Exhibit button.

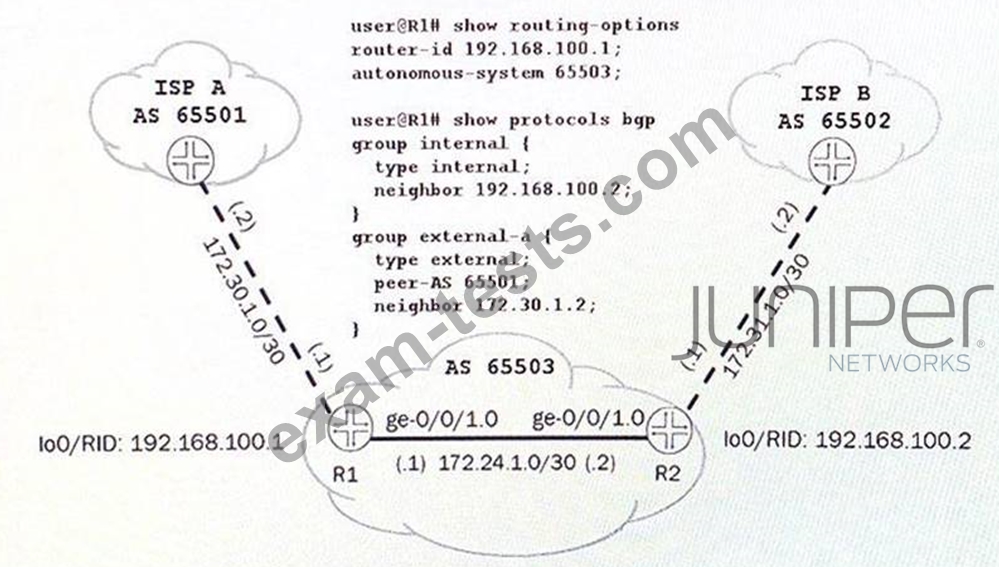

You are establishing a BGP session between R1 and R2. R2 shows 172.24.1.1 as its peer address for R1 instead of 192.168.100.1.
Referring to the exhibit, what must be changed in the configuration?

A.A peer-as statement must be added to R1 in the internal group.

B.A local address statement with the lo0 address must be added to R1 in the internal group.

C.A local interface statement with the lo0 address must be added to R1 in the internal group.

D.An export policy statement must be added to R1 in the internal group to allow the lo0 address to peer.

Question 34

Your network is configured with dynamic inspection (DAI) using the default for all the DHCP and ARP related configurations> You just added a new device connected to a trunk port and configured it to obtain an IP address using DHCP.
Which two statements are correct in this scenario? (Choose two.)

A.DAI validates the ARP packets for the new device against the DHCP snooping database.

B.DHCP snooping adds the DHCP assigned IP address for the device to its database.

C.The DHCP server assign the IP addressing information to the new device.

D.The SRP request and response packets for the new device will bypass DAI.

Question 35

Exhibit.

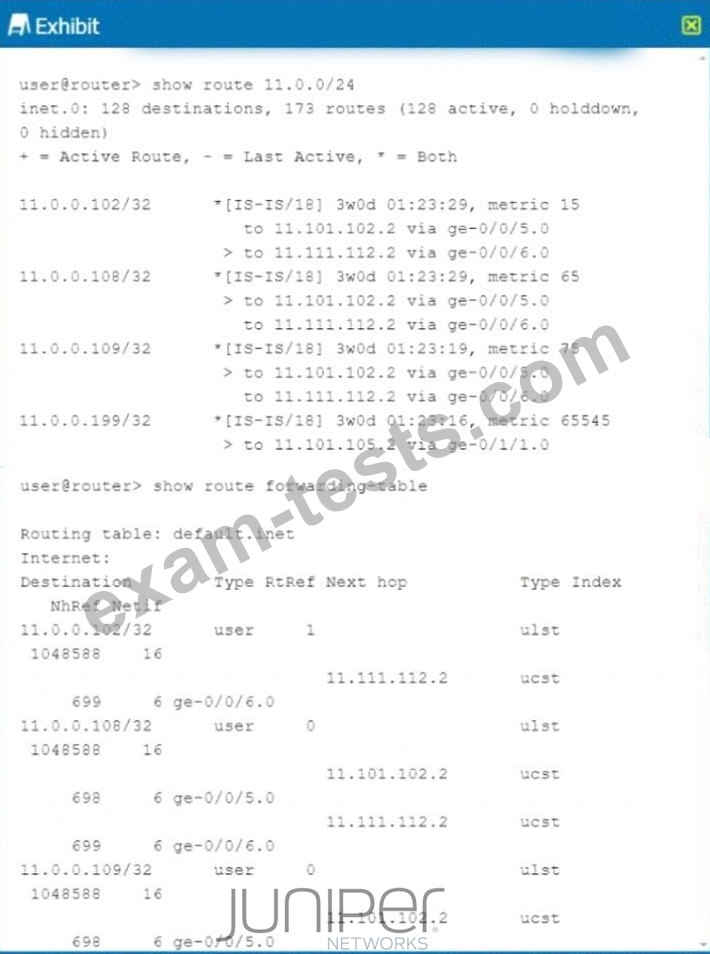

Referring to the output shown in the exhibit, which statement is correct?

A.11.0.0.108 is being per-packet load-balanced.

B.11.0.0.102/32 is being per-packet load-balanced.

C.11.0.0.102/32 is being per-flow load-balanced.

D.11.0.0.108.32 is being per-flow load-balanced.
