Free Access Juniper.JN0-348.v2022-03-11.q104 Practice Test (Page 6)

Question 21

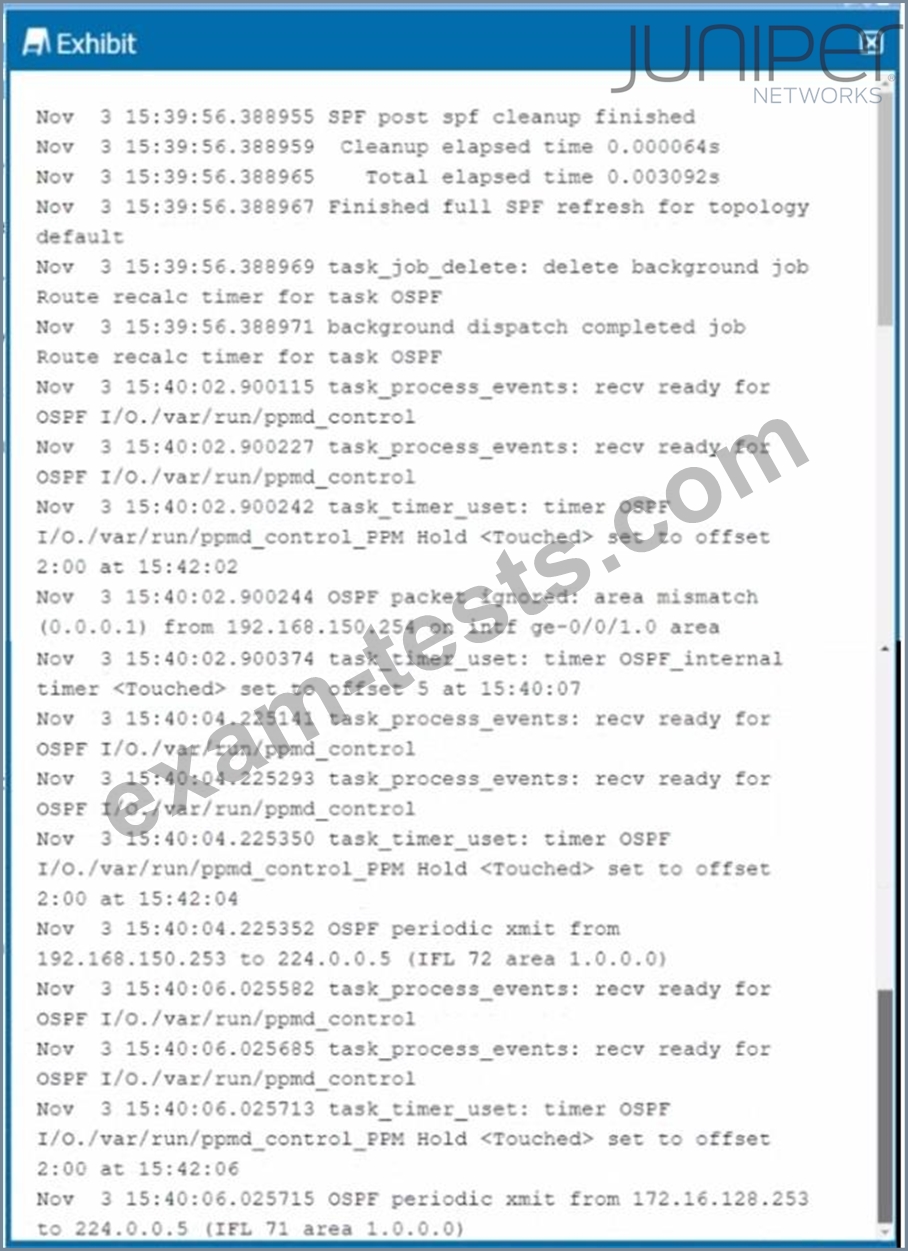

Exhibit.

Based on the traceoptions output shown in the exhibit, what is the problem with the adjacency?

A.authentication mismatch

B.area mismatch

C.MTU mismatch

D.connectivity

Question 22

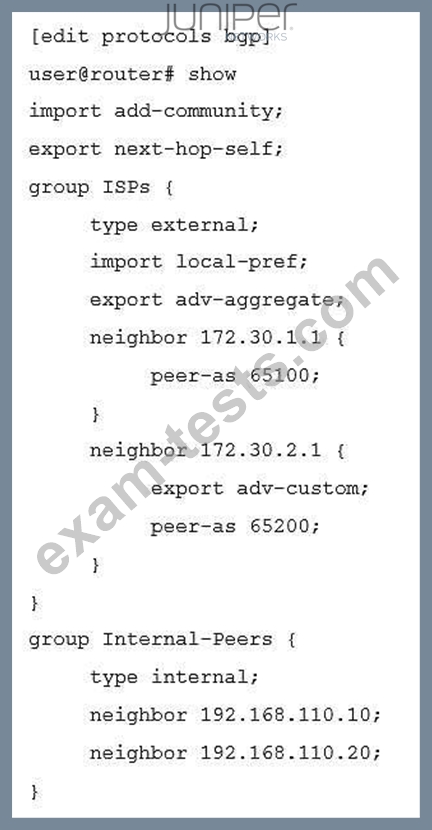

Click the Exhibit button.

Which statement is true about the configuration shown in the exhibit?

A.No import policy will be evaluated when routes are learned from neighbor 172.30.2.1

B.Both the add-communityand local-prefimport policies will be evaluated when routes are learned from neighbor 172.30.2.1

C.Only the local-prefimport policy will be evaluated when routes are learned from neighbor 172.30.1.1

D.Only the add-communityimport policy will be evaluated when routes are learned from neighbor
172.30.1.1

Question 23

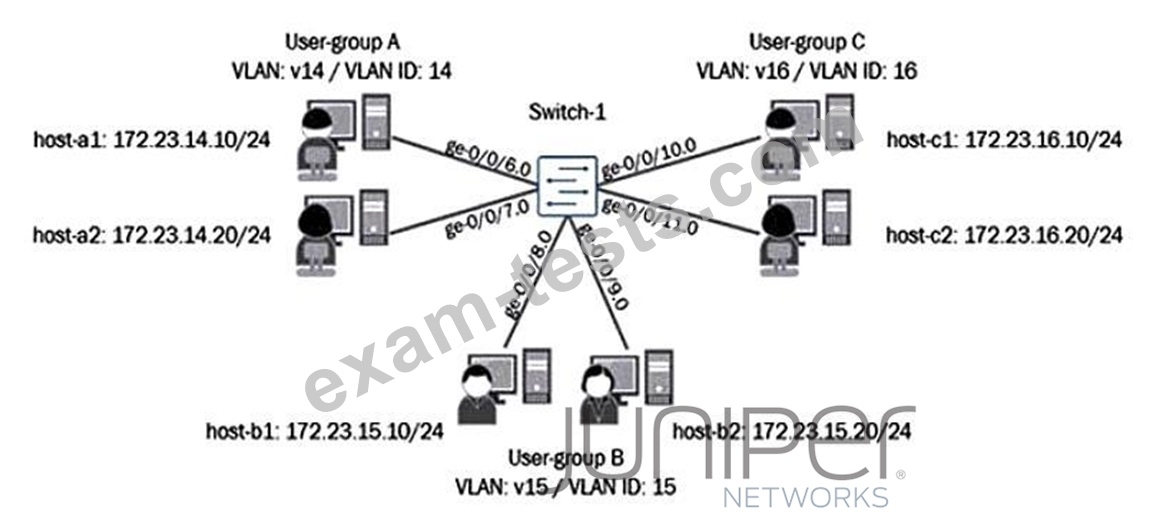

Exhibit.

Referring to the exhibit, all users connected to the same VLAN can communicate with each other, but not with users on other VLANs in this network.
What must be configured to enable communication between the VLANs?

A.A separate routing device is required to forward traffic between the configured VLANs.

B.A logical IRB interface must be created and assigned to each VLAN.

C.A single logical IRB interface must be created and assigned to all three VLANs

D.The switch ports to which the users are connected should be configured as trunk ports.

Question 24

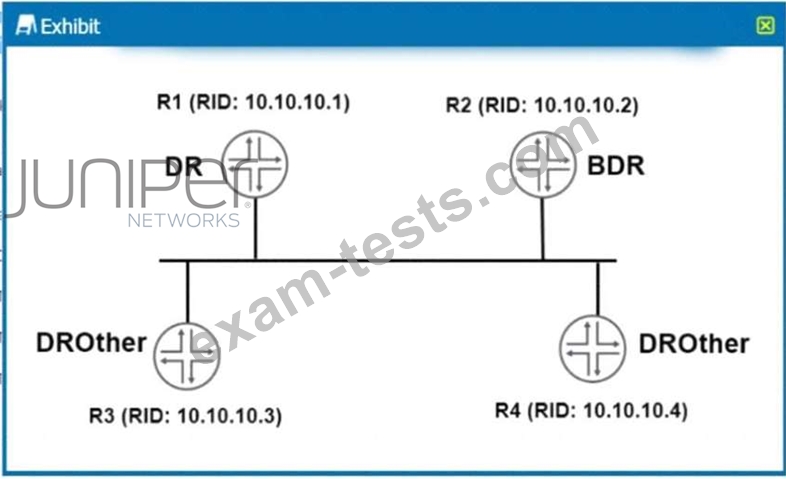

Exhibit.

You have configured OSPF routing as shown in the exhibit. You notice that all interfaces have formed full adjacencies, with the exception of the interfaces connecting R3 and R4 with a status of 2Way.
What is the reason for this status?

A.The two routers must both be configured as DR routers.

B.The interface-type is not configured as p2p.

C.DROther routers will not form a full adjacency with each other.

D.The two routers must be configured in different areas.

Question 25

You want to advertise only a default route into a new area, which will be called area7.
In this scenario, which configuration statement would solve this problem?

A.user@host # set protocols ospf area 0.0.0.7 stub default-metric 10

B.User@host t# set protocols ospf area 0.0.0.7 nssa default-lsa default-metric 10

C.user@host # set protocols ospf area 0.0.0.7 stub

D.User@host # set protocols ospf area 0.0.0.7 stub no-summaries
