Understanding Rack Size Determination:
The size of a rack for installation is determined by the dimensions of the equipment to be housed in it, primarily focusing on the depth and height of the devices.
Switch Depth:
Depth of Equipment: The depth of network switches and other rack-mounted devices directly influences the depth of the rack. If the equipment is deeper, a deeper rack is required to accommodate it.
Industry Standards: Most racks come in standard depths, but it is essential to match the depth of the rack to the deepest piece of equipment to ensure proper fit and airflow.
Server Height:
Height of Equipment: The height of servers and other devices is measured in rack units (U), where 1U equals 1.75 inches. The total height of all equipment determines the overall height requirement of the rack.
Rack Units: A rack's height is typically described in terms of the number of rack units it can accommodate, such as 42U, 48U, etc.

Confidentiality with Data at Rest: Confidentiality is a core principle of data security, ensuring that data stored (at rest) is only accessible to authorized individuals. This protection is achieved through mechanisms such as encryption, access controls, and permissions.
Privileged Access: The statement "Data can be accessed after privileged access is granted" aligns with the confidentiality principle, as it restricts data access to users who have been granted specific permissions or roles. Only those with the appropriate credentials or permissions can access the data.

A patch panel is the best choice to facilitate a central termination point for all network cables on the floor of a company building. Patch panels are used to manage and organize multiple network cables, providing a central point where all cables converge. This setup allows for easy management, troubleshooting, and reconfiguration of network connections. The other options, such as UPS (Uninterruptible Power Supply), MDF (Main Distribution Frame), and rack, serve different purposes and are not specifically designed for the central termination of network cables.
Reference: CompTIA Network+ Certification Exam Objectives - Network Installation section.

Comprehensive and Detailed In-Depth Explanation:
Quality of Service (QoS) ensures video conferencing receives priority bandwidth to prevent latency, jitter, and packet loss.
* QoS settings prioritize real-time traffic, ensuring smooth performance.
? Reference: CompTIA Network+ (N10-009) Official Study Guide - Section: Network Performance Optimization

See the step by step complete solution below.
Explanation:
Devices in both buildings should be able to access the Internet.
Security insists that all Internet traffic be inspected before entering the network.
Desktops should not see traffic destined for other devices.

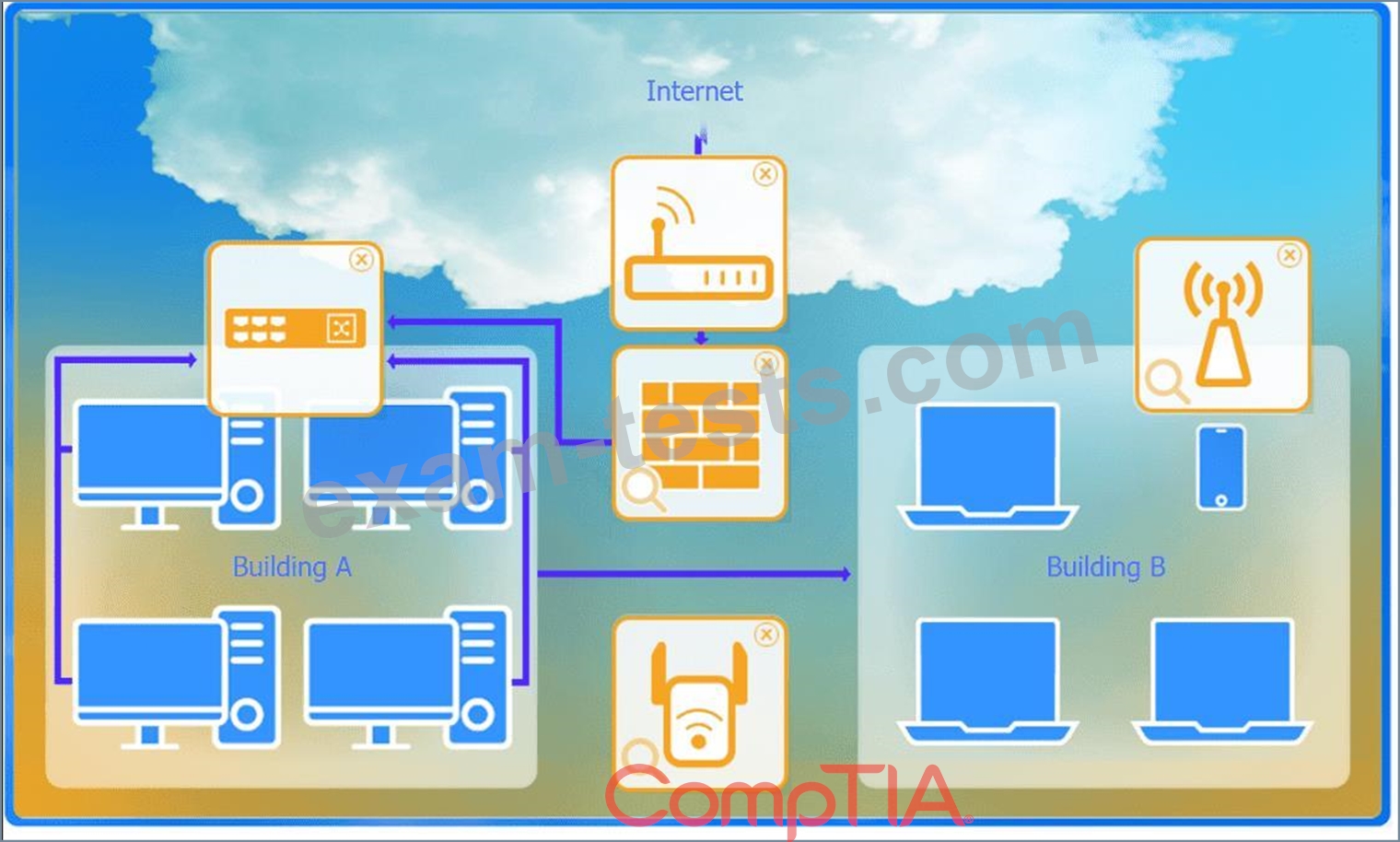

Here is the corrected layout with explanation:
Building A:
Switch: Correctly placed to connect all desktops.
Firewall: Correctly placed to inspect all incoming and outgoing traffic.
Building B:
Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.
Between Buildings:
Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.
Connection to the Internet:
Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.
Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.
Corrected Setup:
Top-left (Building A): Switch
Bottom-left (Building A): Firewall (inspect traffic before it enters the network) Top-middle (Internet connection): Router Bottom-middle (between buildings): Wireless Range Extender Top-right (Building B): Wireless Access Point (WAP) In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

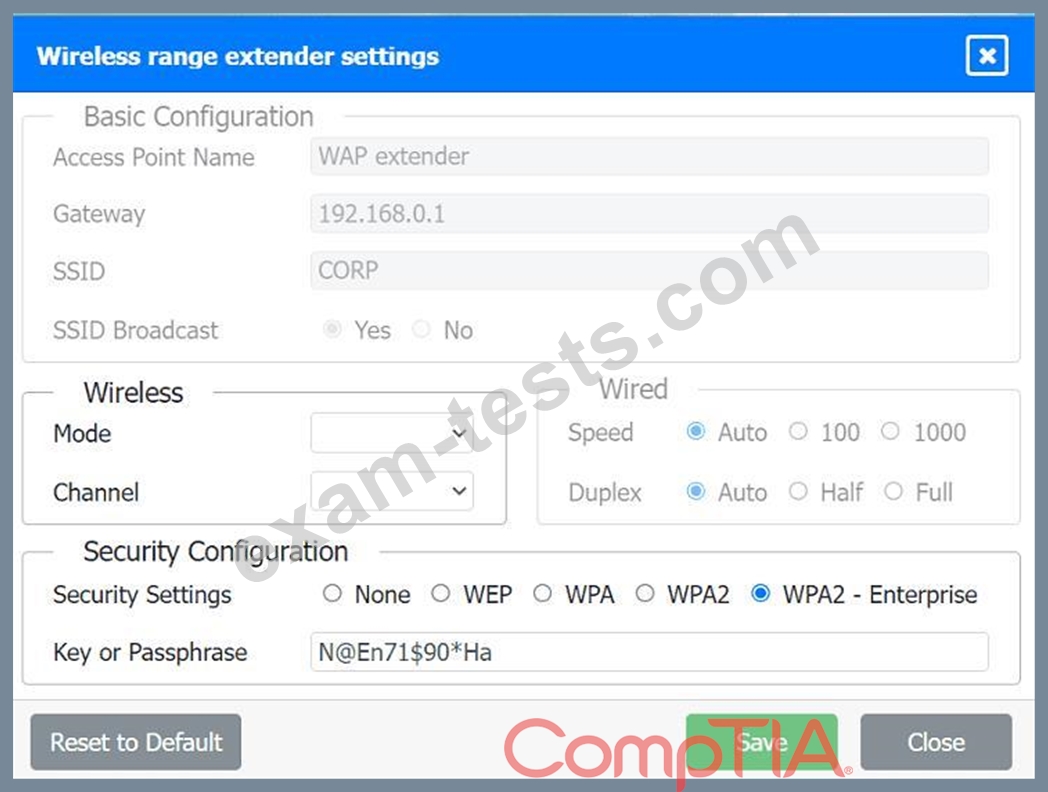

Configuration for Wireless Range Extender:
SSID: CORP
Security Settings: WPA2 or WPA2 - Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.

To configure the wireless range extender for security, follow these steps:
SSID (Service Set Identifier):
Ensure the SSID is set to "CORP" as shown in the exhibit.
Security Settings:
WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.
Key or Passphrase:
If you select WPA2, enter a strong passphrase in the "Key or Passphrase" field.
If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.
Wireless Mode and Channel:
Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.
Wired Speed and Duplex:
Set the speed to "Auto" unless you have specific requirements for 100 or 1000 Mbps.
Set the duplex to "Auto" unless you need to specify half or full duplex based on your network equipment.
Save Configuration:
After making the necessary changes, click the "Save" button to apply the settings.
Here is how the configuration should look after adjustments:
SSID: CORP
Security Settings: WPA2 or WPA2 - Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.

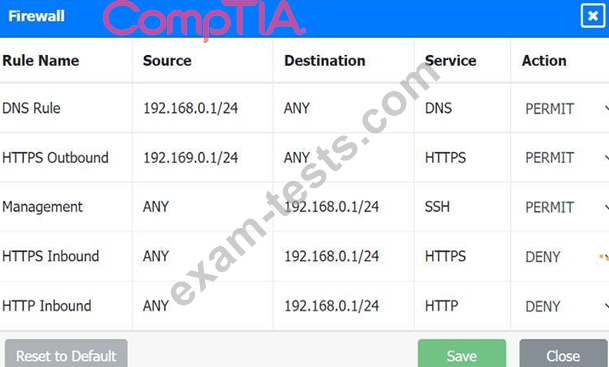

Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:
DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.
HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.
Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.
HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.
HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.
Suggested Additional Settings:
Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.
Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.
Firewall Configuration Adjustments:
Correct the Network Typo:
Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.
Permit General Outbound Traffic:
Rule Name: General Outbound
Source: 192.168.0.1/24
Destination: ANY
Service: ANY
Action: PERMIT
Deny All Other Traffic:
Rule Name: Block All
Source: ANY
Destination: ANY
Service: ANY
Action: DENY
Here is how your updated firewall settings should look:
Rule Name
Source
Destination
Service
Action
DNS Rule
192.168.0.1/24
ANY
DNS
PERMIT
HTTPS Outbound
192.168.0.1/24
ANY
HTTPS
PERMIT
Management
ANY
192.168.0.1/24
SSH
PERMIT
HTTPS Inbound
ANY
192.168.0.1/24
HTTPS
DENY
HTTP Inbound
ANY
192.168.0.1/24
HTTP
DENY
General Outbound
192.168.0.1/24
ANY
ANY
PERMIT
Block All
ANY
ANY
ANY
DENY
These settings ensure that:
Internal devices can access DNS and HTTPS services externally.
Management access via SSH is permitted.
Inbound HTTP and HTTPS traffic is denied unless otherwise specified.
General outbound traffic is allowed.
All other traffic is blocked by default, ensuring a secure environment.
Make sure to save the settings after making these adjustments.
