See the solution in Explanation
Explanation:
To validate routing between networks hosting Workstation A and File Server 2, follow these steps:
Step-by-Step Solution
Review Routing Tables:
Check the routing tables of Router A, Router B, and Router C to identify any missing routes.
Identify Missing Routes:
Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.
Add Static Routes:
If a route is missing, add a static route to the relevant destination network via the correct interface.
Detailed Analysis and Configuration
Router A:

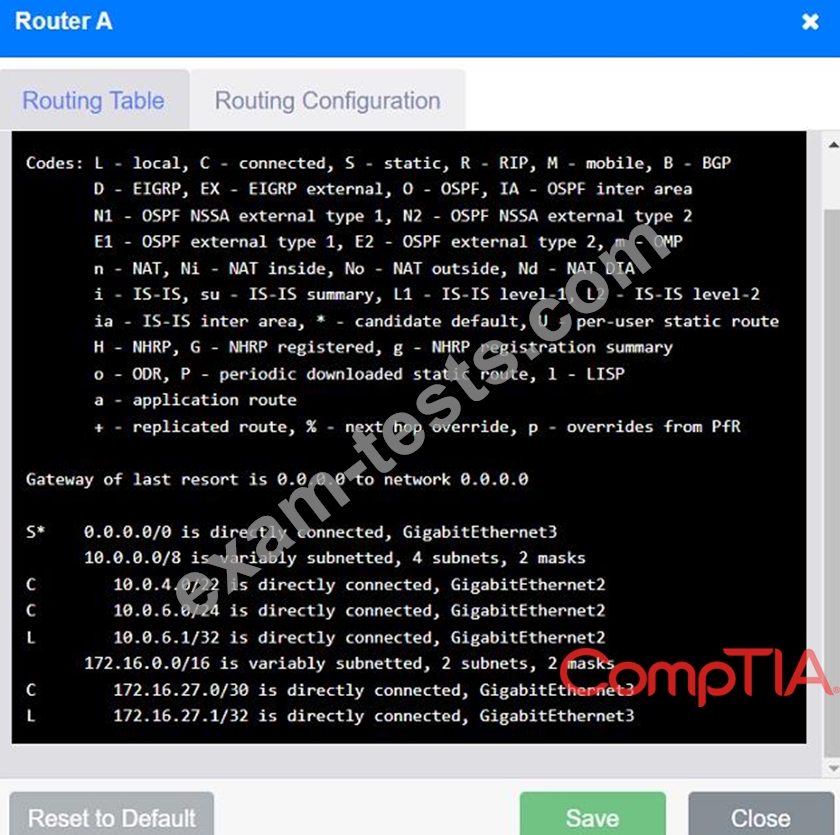

Routing Table:
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, GigabitEthernet3
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C 10.0.4.0/22 is directly connected, GigabitEthernet2
C 10.0.6.0/24 is directly connected, GigabitEthernet2
L 10.0.6.1/32 is directly connected, GigabitEthernet2
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.0/30 is directly connected, GigabitEthernet3
L 172.16.27.1/32 is directly connected, GigabitEthernet3
Router B:
Routing Table:
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, GigabitEthernet1
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C 10.0.0.0/22 is directly connected, GigabitEthernet1
L 10.0.0.1/32 is directly connected, GigabitEthernet1
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.4/30 is directly connected, GigabitEthernet1
L 172.16.27.5/32 is directly connected, GigabitEthernet1
Router C:
Routing Table:
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
S 10.0.0.0/22 [1/0] via GigabitEthernet1
S 10.0.4.0/22 [1/0] via GigabitEthernet2
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.0/30 is directly connected, GigabitEthernet2
L 172.16.27.2/32 is directly connected, GigabitEthernet2
C 172.16.27.4/30 is directly connected, GigabitEthernet1
L 172.16.27.6/32 is directly connected, GigabitEthernet1
Configuration Steps:

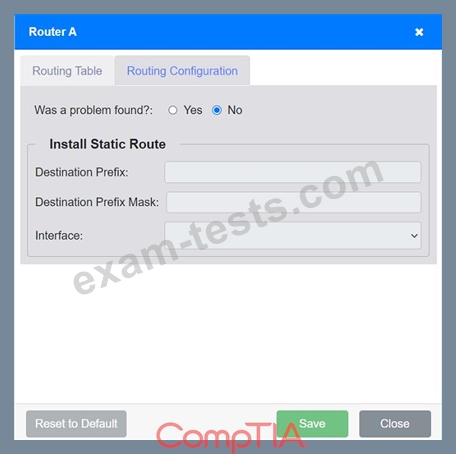

Router A:
Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C's IP is 172.16.27.1):
Destination Prefix: 10.0.0.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet3

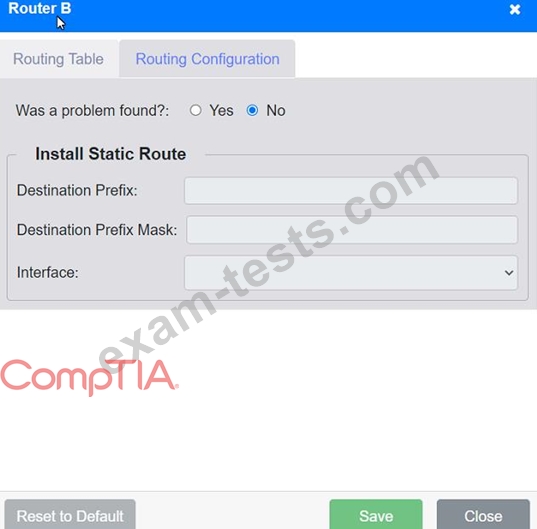

Router B:
Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C's IP is 172.16.27.5):
Destination Prefix: 10.0.4.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet1

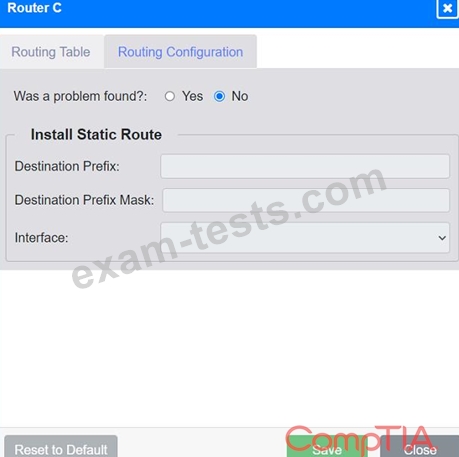

Router C:
Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A's IP is 172.16.27.2):
Destination Prefix: 10.0.6.0
Destination Prefix Mask: 255.255.255.0
Interface: GigabitEthernet2
Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B's IP is 172.16.27.1):
Destination Prefix: 10.0.0.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet1
Summary of Static Routes:
Router A:
ip route 10.0.0.0 255.255.252.0 GigabitEthernet3
Router B:
ip route 10.0.4.0 255.255.252.0 GigabitEthernet1
Router C:
ip route 10.0.6.0 255.255.255.0 GigabitEthernet2
ip route 10.0.0.0 255.255.252.0 GigabitEthernet1
These configurations ensure that each router knows the correct paths to reach Workstation A and File Server 2, resolving the connectivity issue.

An IDS (Intrusion Detection System) is deployed out-of-band, meaning it passively monitors network traffic using a SPAN/mirror port or network tap. It detects and analyzes suspicious traffic without introducing latency since it does not sit in-line.
* A. IPS (Intrusion Prevention System) is in-line and can block traffic but may add latency.
* C. Load balancer distributes traffic across servers for performance and redundancy, not for threat detection.
* D. Firewall filters traffic at the perimeter or internally; it can affect latency but does not provide the same in-depth attack analysis.
References (CompTIA Network+ N10-009):
* Domain: Network Security - IDS vs. IPS, in-band vs. out-of-band monitoring, passive detection methods.

See the solution in Explanation
Explanation:
To validate routing between networks hosting Workstation A and File Server 2, follow these steps:
Step-by-Step Solution
Review Routing Tables:
Check the routing tables of Router A, Router B, and Router C to identify any missing routes.
Identify Missing Routes:
Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.
Add Static Routes:
If a route is missing, add a static route to the relevant destination network via the correct interface.
Detailed Analysis and Configuration
Router A:
Routing Table:
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, GigabitEthernet3
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C 10.0.4.0/22 is directly connected, GigabitEthernet2
C 10.0.6.0/24 is directly connected, GigabitEthernet2
L 10.0.6.1/32 is directly connected, GigabitEthernet2
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.0/30 is directly connected, GigabitEthernet3
L 172.16.27.1/32 is directly connected, GigabitEthernet3
Router B:
Routing Table:
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, GigabitEthernet1
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C 10.0.0.0/22 is directly connected, GigabitEthernet1
L 10.0.0.1/32 is directly connected, GigabitEthernet1
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.4/30 is directly connected, GigabitEthernet1
L 172.16.27.5/32 is directly connected, GigabitEthernet1
Router C:
Routing Table:
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
S 10.0.0.0/22 [1/0] via GigabitEthernet1
S 10.0.4.0/22 [1/0] via GigabitEthernet2
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.0/30 is directly connected, GigabitEthernet2
L 172.16.27.2/32 is directly connected, GigabitEthernet2
C 172.16.27.4/30 is directly connected, GigabitEthernet1
L 172.16.27.6/32 is directly connected, GigabitEthernet1
Configuration Steps:
Router A:
Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C's IP is 172.16.27.1):
Destination Prefix: 10.0.0.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet3
Router B:
Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C's IP is 172.16.27.5):
Destination Prefix: 10.0.4.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet1
Router C:
Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A's IP is 172.16.27.2):
Destination Prefix: 10.0.6.0
Destination Prefix Mask: 255.255.255.0
Interface: GigabitEthernet2
Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B's IP is 172.16.27.1):
Destination Prefix: 10.0.0.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet1
Summary of Static Routes:
Router A:
ip route 10.0.0.0 255.255.252.0 GigabitEthernet3
Router B:
ip route 10.0.4.0 255.255.252.0 GigabitEthernet1
Router C:
ip route 10.0.6.0 255.255.255.0 GigabitEthernet2
ip route 10.0.0.0 255.255.252.0 GigabitEthernet1
These configurations ensure that each router knows the correct paths to reach Workstation A and File Server 2, resolving the connectivity issue.

When multiple redundant links exist between switches, Spanning Tree Protocol (STP) is required to prevent switching loops. STP blocks redundant paths but can allow aggregation if configured with protocols like LACP.
B). SVIs provide Layer 3 interfaces, not loop prevention.
C). Native VLAN defines the untagged VLAN but does not manage loops.
D). FHRP (VRRP, HSRP, GLBP) provides gateway redundancy, not switch uplink management.
References (CompTIA Network+ N10-009):
Domain: Network Infrastructure - STP, redundancy, loop prevention.
