Explanation

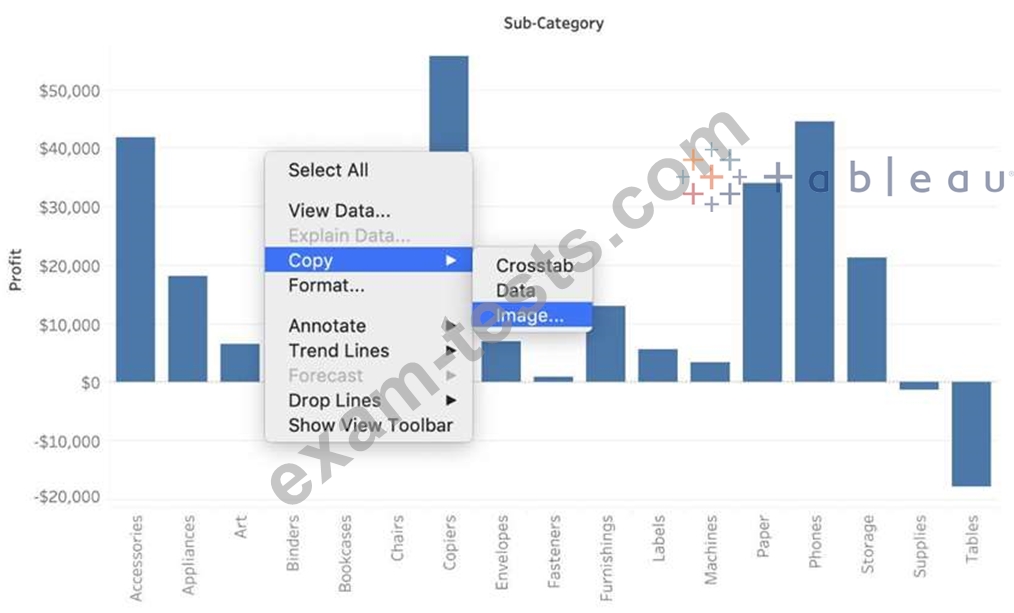

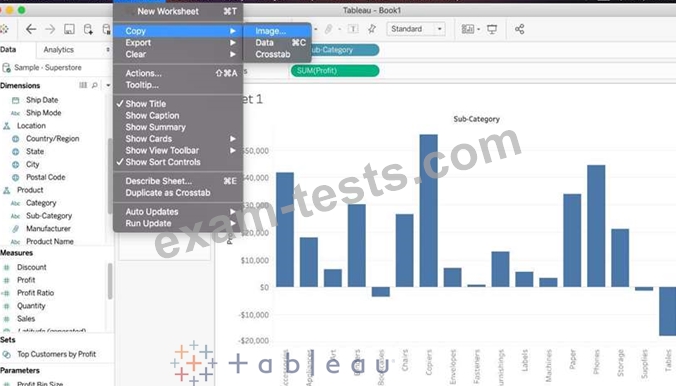

The following are 2 correct ways to copy the worksheet visualisation as an image:

AND

Explanation

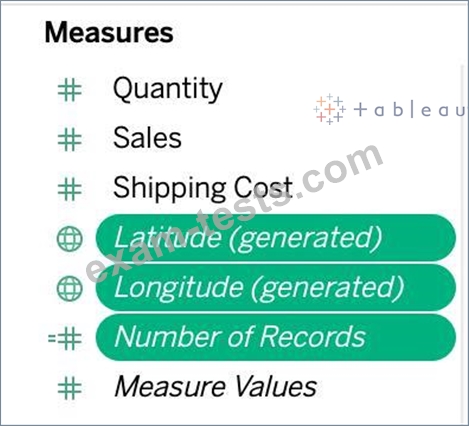

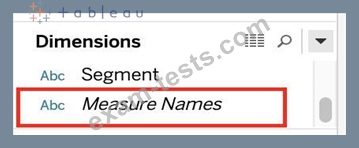

Measure Names is a dimension. Latitude, Longitude, and Number of records are all measures.

Explanation

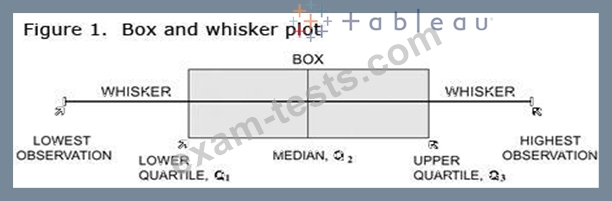

In a box and whisker plot:
1) The ends of the box are the upper and lower quartiles, so the box spans the interquartile range
2) The median is marked by a vertical line inside the box
3) The whiskers are the two lines outside the box that extend to the highest and lowest observations.

Explanation
IMPORTANT QUESTION, PAY ATTENTION
By default, all filters that you set in Tableau are computed independently. That is, each filter accesses all rows in your data source without regard to other filters. However, you can set one or more categorical filters as context filters for the view. You can think of a context filter as being an independent filter. Any other filters that you set are defined as dependent filters because they process only the data that passes through the context filter.
You may create a context filter to:
1) Improve performance - If you set a lot of filters or have a large data source, the queries can be slow. You can set one or more context filters to improve performance.
2) Create a dependent numerical or top N filter - You can set a context filter to include only the data of interest, and then set a numerical or a top N filter.

Explanation

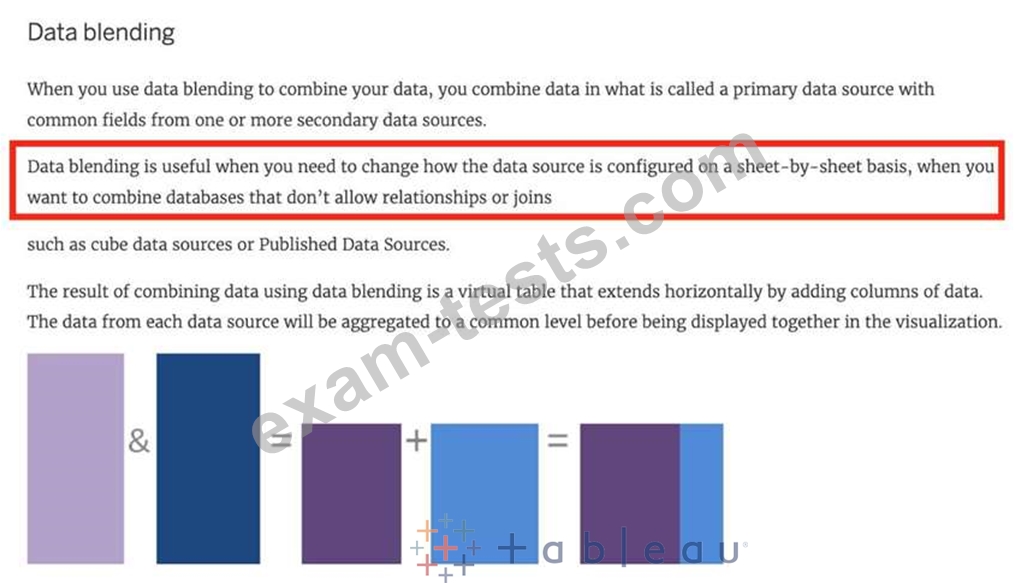

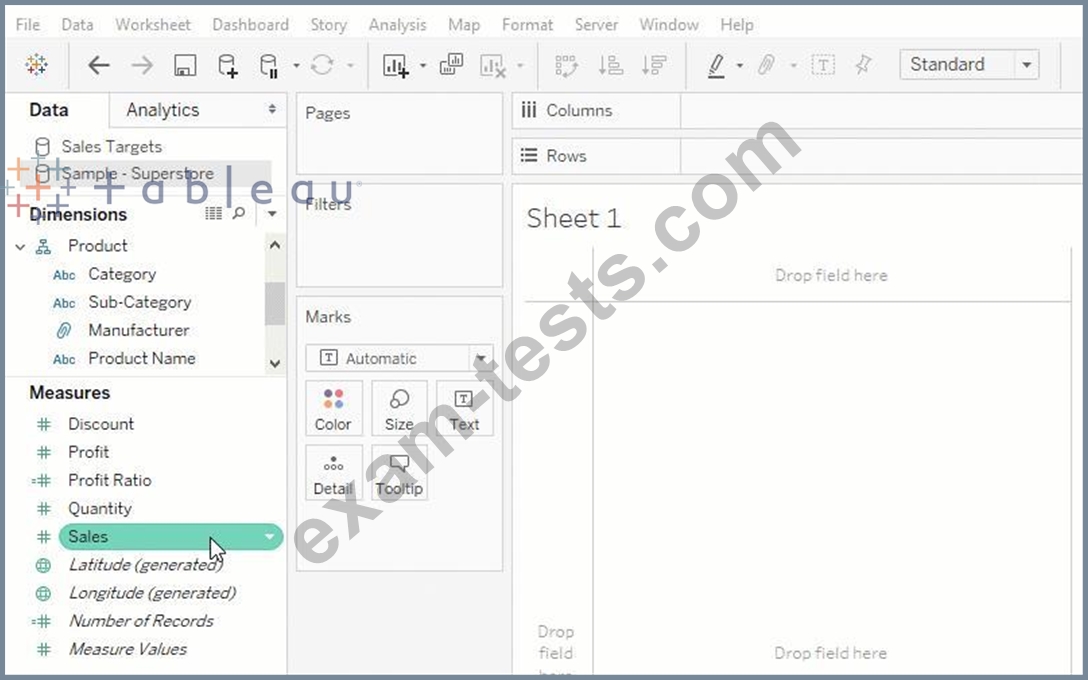

Data blending is performed on a sheet-by-sheet basis and is established when a field from a second data source is used in the view. To create a blend in a workbook already connected to at least two data sources, bring a field from one data source to the sheet-it becomes the primary data source.
Switch to the other data source and use a field on the same sheet-it becomes a secondary data source. An orange linking icon will appear in the data pane, indicating which field(s) are being used to blend the data sources.

According to the official Tableau Documentation:

To read more about Data Blending, click on THIS link.
