Free Access Juniper.JN0-348.v2022-03-11.q104 Practice Test (Page 4)

Question 11

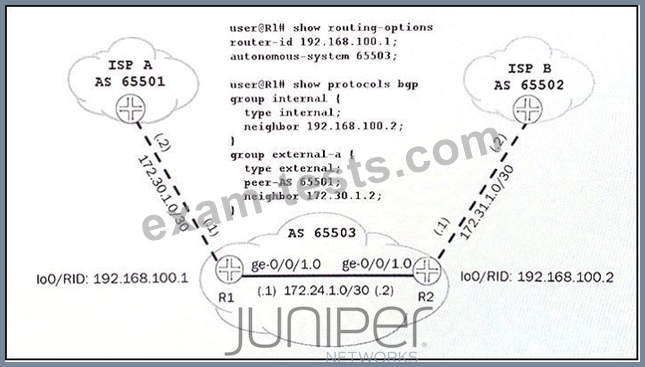

You are establishing a BGP session between R1 and R2. R2 shows 172.24.1.1 as its peer address for R1 instead of 192.168.100.1.

Referring to the exhibit, what must be changed in the configuration?

A.A local address statement with the lo0address must be added to R1 in the internal group.

B.A local interface statement with the lo0 address must be added to R1 in the internal group.

C.Apeer-asstatement must be added to R1 in the internalgroup.

D.An export policy statement must be added to R1 in the internal group to allow the lo0 address to peer.

Question 12

Click the Exhibit button.

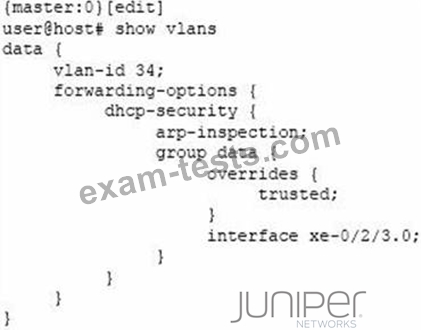

Referring to the exhibit, a packet tagged with vlan-id 34 arrives on interface xe-0/2/3.0 with a source MAC that does not match an entry in the DHCP snooping database.
In this scenario, which statement is correct?

A.The destination MAC added to the DHCP snooping database.

B.The packet is forwarded and no error message is logged.

C.The source MAC is added to the DHCP snooping database.

D.An error message is logged and the packet is forwarded.

Question 13

What are two characteristics of IS-IS CSNPs? (Choose two.)

A.IS-IS CSPNs are used to request a copy of a missing link state PDU.

B.IS-IS CSONs contains header information for all link-state PDUs.

C.IS-IS CSPNs are used to maintain the link-state database synchronization.

D.IS-IS CSPNs contain header information for specific requested link-state PDUs.

Question 14

Click the Exhibit button.

Referring to the exhibit, which path will traffic from R6 take to reach R1?

A.R6 > R5 > R3 > R2 > R1

B.R6 > R4 > R2 > R1

C.R6 > R4 > R2 > R3 > R1

D.R6 > R5 > R3 > R1

Question 15

You were provided a network diagram that told you to number your network from the 191.255.0.0/16
space. OSPF is enabled and adjacencies are up, but no routers are learning any routes.
What can explain this?

A.The default OSPF export policies advertise nothing, so you need to apply export policy

B.The default OSPF import policy rejects all OSPF routes, so you need to apply import policy

C.You need to enable OSPF on the lo0 interface to provide a route to the RID of each router in the network

D.You need to modify the martian table with a 191.255.0.0/16 accept statement
